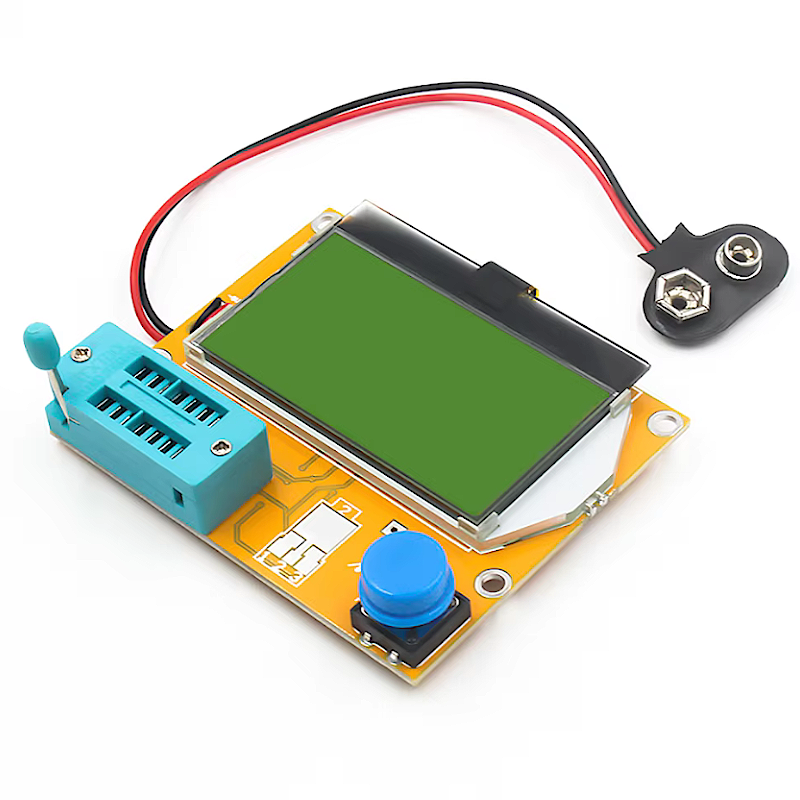

LCR-T4 128x64 LCD ESR SCR Meter Transistor Tester

Referência : FER02049

19,90 €

preço com IVA incluído

Este é um dispositivo que permite testar uma variedade de componentes eletrônicos, como resistências, condensadores, díodos, transístores e SCRs. Além disso, pode medir a resistência equivalente série (ESR) de condensadores, um parâmetro importante para avaliar a qualidade desses componentes.
O dispositivo possui um LCD de 128x64, facilitando a visualização dos resultados, e é conhecido pela sua facilidade de uso, exigindo pouca configuração. É útil tanto em reparos eletrônicos quanto em projetos de desenvolvimento de circuitos

NOTA: Pilha 9V não incluída!

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

Powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power.
Measuring bipolar transistor current amplification factor and base-emitter threshold voltage.
Automatic test the pin of a component, and display on the 128 * 64 LCD backlight.
Measure the gate and gate capacitance of the MOSFET threshold voltage.
One -button operation, automatic shutdown, only 20nA shutdown current.
Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified.
2uF more capacitors can simultaneously measure the equivalent series resistance ESR values.
Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4.
Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.

Specifications:

Material: PCB
Power Mode: 6F22
Display: 128 * 64 LCD backlight
Testing Speed: 2 seconds (1 minute is normal for large capacitor)
Shutdown Current: 20nA
Displayed Value: 25pf-100mF (resolution 1pF)
Inductance: 0.01mH-20H
Resistance: ≤2100Ω
Power Voltage: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
Resolution of Resistance Measurement: 0.1 ohms
The Highest Measured Value: 50M ohms
Provided Testing Current: Approx. 6mA
Product Size: 7.2 x 6.25cm (L * W)


Multifunctional Our transistor tester is multifunctional and allows you to measure the parameters of RLC elements such as resistors, inductors and capacitors, as well as semiconductor elements such as rectifier diodes, LEDs, bipolar transistors, MOSFET transistors and triacs. As a result, we are able to analyze and test various electronic components, making work easier and achieving excellent results.	Display Our multifunctional TFT is a device equipped with a graphical display with a resolution of 128 x 64 pixels that is characterised by a green backlight. With our meter, users can read the measurement results comfortably and clearly even in low light conditions. The included screen allows you to analyze and monitor the parameters of transistors and other components.	Easy to use Simply place the tested element into the capacitor tester with the one-button operation. After about 2 seconds, we will get a finished result (if the tested element has a large capacity, the measurement may take longer). The display shows the result for 10 seconds, then the meter automatically switches to standby mode and consumes approx. 20nA Please note that it is recommended to discharge the product before the first measurement begins.	Compact size Our gauge has compact dimensions, making it an extremely practical and handy gauge. Thanks to the appropriate proportions, it sits comfortably in the hand. Thanks to its compact dimensions, the transistor is also easy to transport and store. It can be stored in a toolbox or bag, making it the perfect companion for anyone working with electronics.

Product advantages:

Versatility: Our transistor tester is multifunctional and helps you measure and test different types of electronic components. Measuring accuracy: Our gauge ensures precise measurements of the parameters of electronic components. Ease of use: Our meter is easy to use, so both experienced electronics enthusiasts and inexperienced enthusiasts can use it without any problems. Measuring speed: Our transistor tester provides fast measurement results, saving you time and increasing work efficiency. Mobility: Thanks to its compact dimensions and low weight, our gauge is easy to transport and can be used in the field.

Application:

Our meter transistor is an excellent tool for measuring and testing electronic components. Thanks to its features, Transistor is perfect for professionals and electronics enthusiasts. This allows you to precisely analyze the parameters of transistors, but also other components such as resistors, capacitors, inductors, rectifier diodes, bipolar transistors, MOSFET transistors and triacs.
