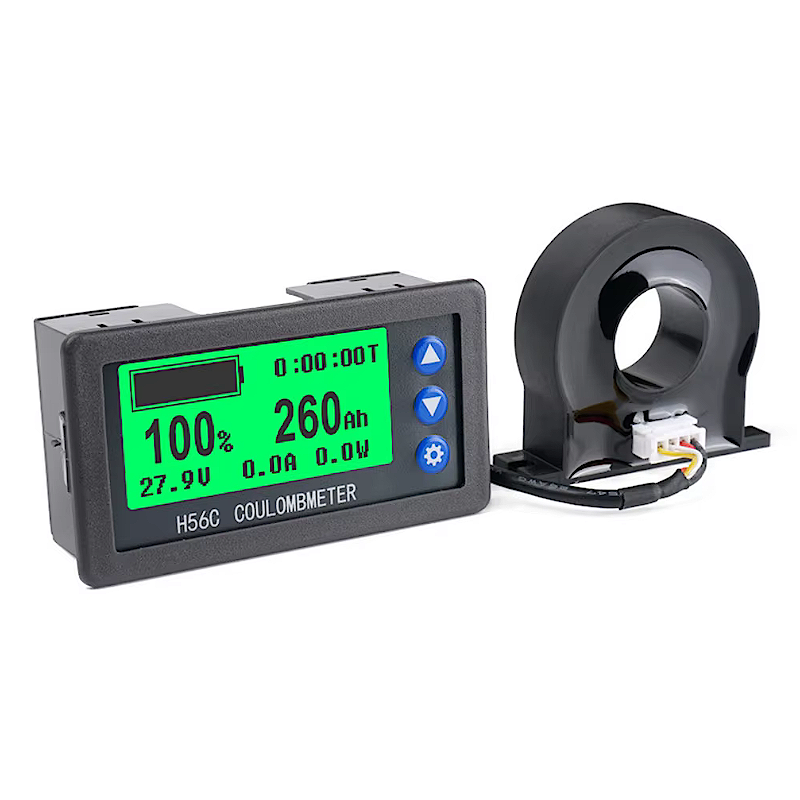

Product selling points:

1. Bidirectional precise detection, compatible with all batteries, isolated measurement, without damaging the original circuit
2. Simple installation, convenient wiring, efficient and stable performance, and long working life.
3. Equipped with high-end polymer chips, high-precision circuit boards, and intelligent processors
4. Real time display of battery parameters: battery percentage, battery capacity, voltage, current, power size, charging and discharging time.
5. Wide application range: ternary lithium batteries, iron phosphate batteries, and other types of batteries.


Product parameters:

Working voltage: 9-100V
Current range: 50A, 100A, 200A, 300A, 400A
Capacity range: 0~99999Ah
Working current: 7.5mA
Backlight off: 3.5mA
Voltage accuracy: 1% (± 1 word)
Current accuracy: 1% (± 1 word)
External dimensions: 79 * 43 * 27mm
Opening size: 76.5 * 39.5mm
Display size: 49 * 24mm
Sensor size: 55 * 49 * 15mm
Backlight color: green
Working temperature: -10~65 ℃
