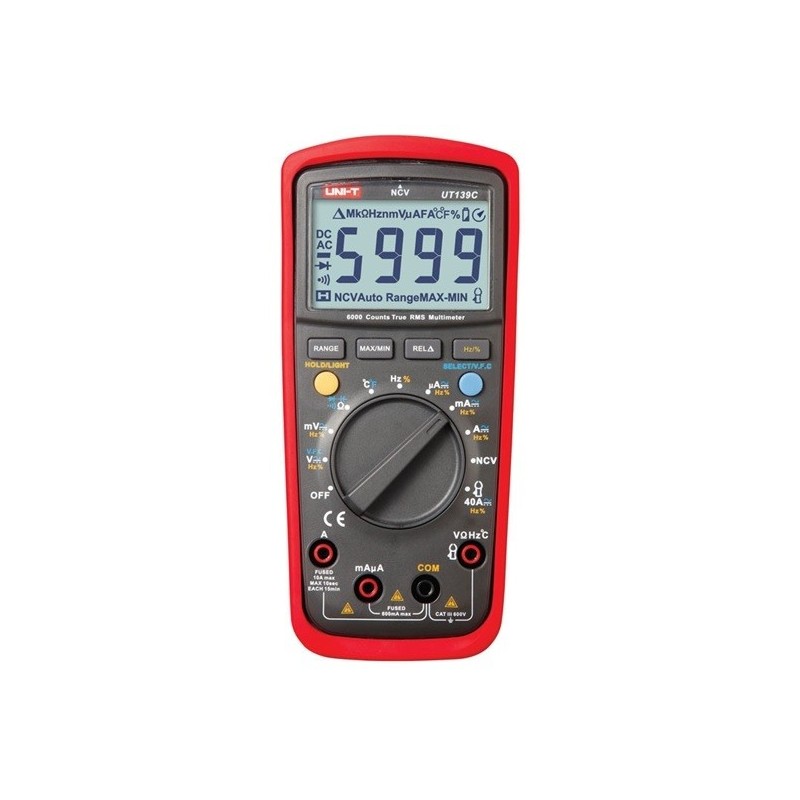

Multímetro Digital True RMS Escala Automática UT139C
  • Multímetro Digital True RMS Escala Automática UT139C
  • Multímetro Digital True RMS Escala Automática UT139C
  • Multímetro Digital True RMS Escala Automática UT139C
  • Multímetro Digital True RMS Escala Automática UT139C
  • Multímetro Digital True RMS Escala Automática UT139C

Multímetro Digital True RMS Escala Automática UT139C

: FER02013
58,90 €
preço com IVA incluído
Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Specifications Range Best Accuracy
Model 　 UT139C
DC Voltage (V) 20mV/200mV/2V/20V/200V/600V 　
40mV/400mV/4V/40V/400V/600V 　
60mV/600mV/6V/60V/600V ±(0.5%+2)
AC Voltage (V) 20mV/200mV/2V/20V/200V/600V 　
40mV/400mV/4V/40V/400V/600V 　
60mV/600mV/6V/60V/600V ±(0.8%+3)
DC Current (A) 200μA/2000μA/20mA/200mA/2A/10A 　
400μA/4000μA/40mA/400mA/4A/10A 　
600μA/6000μA/60mA/600mA/6A/10A ± (0.7%+2)
AC Current (A) 200μA/2000μA/20mA/200mA/2A/10A 　
400μA/4000μA/40mA/400mA/4A/10A 　
600μA/6000μA/60mA/600mA/6A/10A ±(1%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ 　
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ 　
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+2)
Capacitance (F)

9.999nF/99.99nF/999.9nF/9.999μ

F/99.99μF/999.9μF/9.999mF/99.99mF

  ±(4.0%+5)
Frequency (Hz) 10Hz-10MHz ±(0.1%+4)
Temperature (°C) -40 °C~1000°C ±(1.0%+3)
Temperature (°F) -40°F~1832°F ±(1.5%+5)
Features
Display Count 　 6000
Auto Range 　 √
Manual Range 　 √
True RMS 　 √
Bandwidth (Hz) 　 45Hz ～1kHz
V.F.C 　 √
Duty Cycle 0.1% ～ 99.9%  √
Diode 　 Around 3V
NCV 　 √
Battery Test 1.5V / 9V 　
Auto Power Off Around 15 Minutes √
Continuity Buzzer 　 √
Low Battery Indication ≤2.5V √
Data Hold 　 √
Relative Mode 　 √
MAX/MIN 　 √
LCD Backlight 　 √
Input    Protection 600Vrms √
Input    Impedance for DCV 1GΩ Max √
General Characteristics
Power AA1.5*2
LCD Size 58mm × 36 mm
Product Colour Red and grey
Product Net Weight 370g
Product Size 175mm x 81mm x 48.5 mm
Standard Accessories Battery,  Test Leads, Temperature Probe
FER02013
