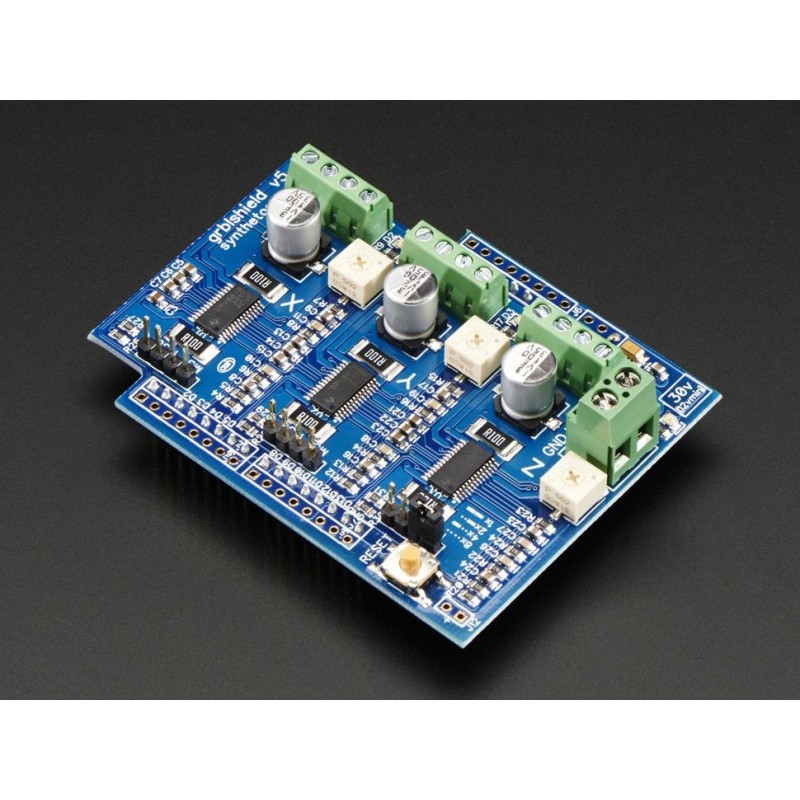

CNC Shield - Synthetos gShield (grblShield) V5 para Arduino
  • CNC Shield - Synthetos gShield (grblShield) V5 para Arduino
  • CNC Shield - Synthetos gShield (grblShield) V5 para Arduino
  • CNC Shield - Synthetos gShield (grblShield) V5 para Arduino

CNC Shield - Synthetos gShield (grblShield) V5 para Arduino

: ARD03113
98,90 €
preço com IVA incluído

Crie o seu próprio controlado CNC de 3 eixos por Arduino com o gShield.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform. Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.



Features:

  • 2.5 Amps per winding
  • 12-30 Input Voltage
  • Open Pin Pass Through
  • 8x Microstepping
  • Screw Down Terminal Voltage Input
  • Hardware 3x Axis (x,y,z)
  • 3x Robust TI DRV8818 Stepper Drivers



GShield Schematic

  • Dimensions: 58mm x 78mm / 2.3" x 3.1"
  • Board Thickness: 2mm / .08"
  • Weight: 31g

For questions and more information on the GShield, check out the Synthetos Forums!
