Motor:bit Controlador de Motores DC para Micro:bit - ELECFREAKS EF03406

:PCO07123
11,90 €
preço com IVA incluído

Esta placa de drivers oferece ao teu Micro:bit a capacidade de acionar dois motores DC e vários canais de servos. É a escolha ideal para robots DIY.

Nota: Placa micro:bit não incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Motor:bit is a motor driving board based on micro:bit. It has integrated a TB6612 motor driving chip, which is used to drive two motors with a maximum 1.2A DC single channel current. It has also integrated 12 GVS ports(for connecting OCTOPUS series of electric bricks) and 1 IIC communication port. These ports allow you to extend with various sensors and electric modules. On the board, P3-P7, and P9-P10 are IO ports for directly driving 3.3V devices; P13-P16, and P19-P20(IIC port) support 3.3V/5V voltage switch. Sliding the voltage switch onboard, it is available to drive 3.3V or 5V devices. Besides, you can play music with the buzzer on motor:bit. Motor:bit is totally designed for DIYers. You can use it to create your own smart car or more funny projects.



PARAMETERS

Item

Parameter

Product Name

motor:bit

Version

No. V1.6

SKU

EF03406

DC Power Voltage

DC 6~12V

DC Motor Driven

2

Max Output Current of Each Motor Connector

1.2A

Extendable Digital IO Port

12

Extendable Analogue IO Port

3

IIC Connector

Support

Passive Buzzer

Support

Size

60mm x 47.5mm

Net Weight

20g



Packing List

Components

Qty(pcs)

Motor:bit

1



Features

  1. Support 2 DC motors.

  2. Max driving current of single channel is 1.2A.

  3. Extend 14-channel IO ports and lead out it by GVS pins. Among it, 6 ports support 3V/5V voltage switch.

  4. With 1 passive buzzer on board.



Dimension

../_images/zXGYS2h.jpg





Definition of Pins

../_images/yiJJzHK.jpg

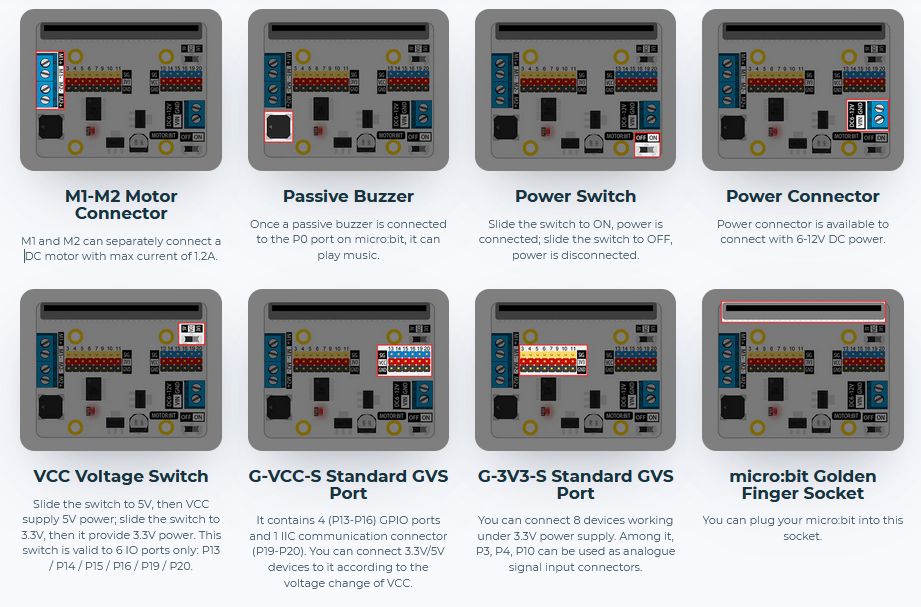

Introduction of Major Components




Hardware Assembly

Connect two TT motors to micro:bit as the picture showed below.

../_images/5ayGCgd.png
