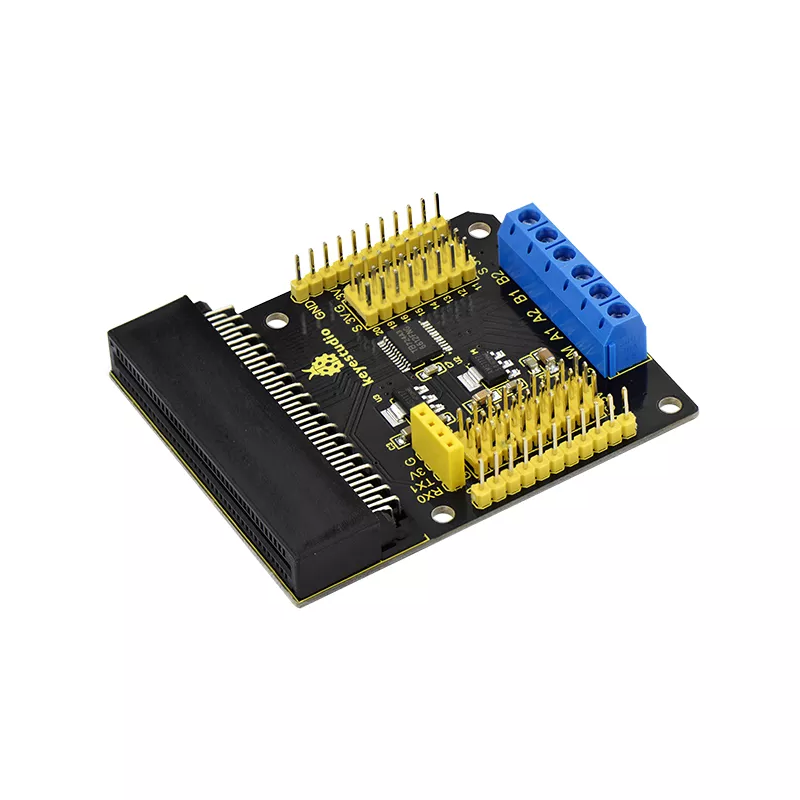

Breakout Board com Motor Driver para Micro:bit - Keyestudio KS0308

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Looking to do more with your BBC micro:bit? Unlock its potential with this motor drive breakout board for the BBC micro:bit!
The motor drive breakout board integrates TB6612FNG chip. Its per channel can output up to 1.2 A continuous drive current, with peak current up to 2A/3.2A.
There are 4 motor control modes: Forward/Reverse /Brake /Stop. And PWM supporting frequency is up to 100 kHz.

The BBC micro:bit pins are broken out to 3PIN headers. These provide an easy way of connecting circuits using 3PIN jumper wires.
At the same time, a 3.3V and 5V voltage-regulator chip is integrated on the breakout board, breaking out 3.3V and 5V power output interfaces.
The board also comes with serial port communication pins.

Features

1. Four motor control modes: Forward/Reverse /Brake /Stop.
2. Access to 3Pin headers connection
3. Integrated with 3.3V and 5V voltage-regulator chip
4. Comes with serial port communication pins

Parameters

1. Input Voltage：DC 6-12V
2. Drive Partial Working Current：≤1.2A
3. Size：70mm*58mm
