• DESCONTINUADO

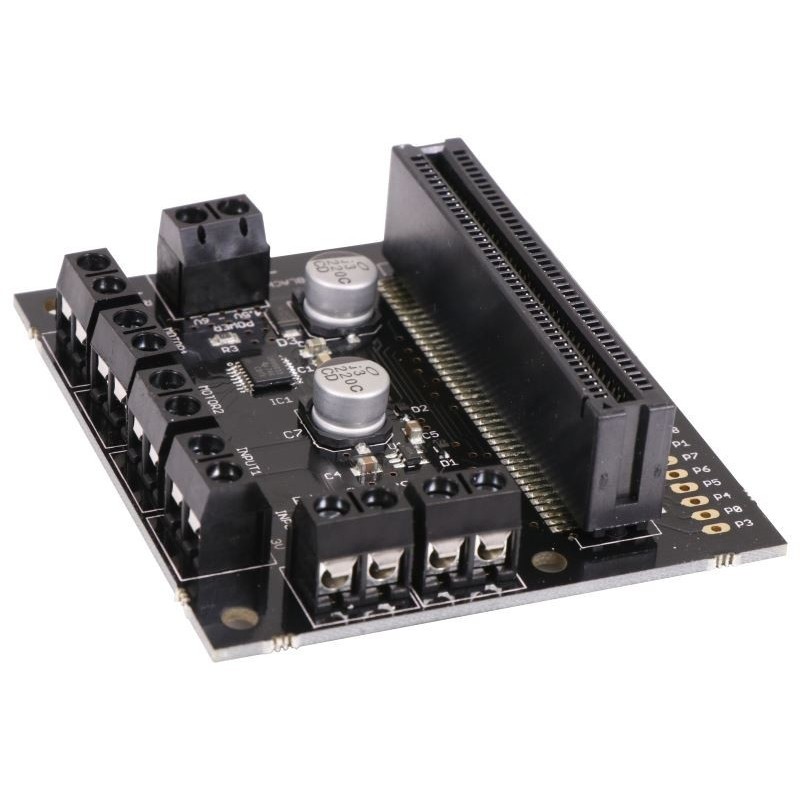

Driver de Motores para BBC micro:bit - V2

: PCO07009
14,95 €
preço com IVA incluído



Esta placa de driver de motor para o BBC micro: bit permite que dois motores sejam acionados com controle de avanço, retorno e paragem, e permite acesso aos outros pinos.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

DESCRIPTION

This board provides a simple way to add motor driving capability to a BBC micro:bit. It allows two motors to be driven with full forward, reverse & stop control. It has terminal blocks to connect four input devices and a regulated 3V supply is fed in to the 80 way connector to power the inserted BBC micro:bit.

In this new version, the pins from the BBC micro:bit are now broken out to pads on the end of the Motor Driver Board. These pads can either be soldered onto directly, or they are the correct spacing for our PCB pin headers (see image below for a close up of the new pads).

5620_description_motor_driver_board_for_

It is ideal for designs such as buggies (see below) and other robotics projects.

5602_description_motor_driver_board_for_

It includes an integrated Edge Connector slot for your BBC micro:bit to easily slot into. It also features external connections to the Buttons A and B inputs. This allows additional switches to be connected to the motor driver board and the state of these can then be read by the BBC micro:bit.

Get up to speed quickly. Example Microsoft TouchDevelop code and example connections in the datasheet (below).

Features:

  • Drive 2 motors with full forward, reverse and stop control.
  • Terminal blocks for easy connection of motors and inputs.
  • 4 inputs (2 analogue inputs and 2 provide external connections to Buttons A and B as inputs).
  • Includes Edge Connector for the BBC micro:bit to slot into.
  • Provide regulated power to the BBC micro:bit.
  • Access the other BBC micro:bit pins easily and conveniently.
  • Ideal for designs such as buggies and other robotics projects.

Contents:

  • 1 x Edge Connector Motor Driver Board for the BBC micro:bit - V2.

Dimensions:

  • Length: 67mm.
  • Width: 61mm.
  • Height: 18mm.

Video:

Requires:

  • 1 x BBC micro:bit.
  • 4.5 - 6V Power Supply.
  • 2 x DC Motors (that are compatible with the power supply used).
  • 1 x Flat-headed Terminal Screwdriver.

Resources:

PCO07009
