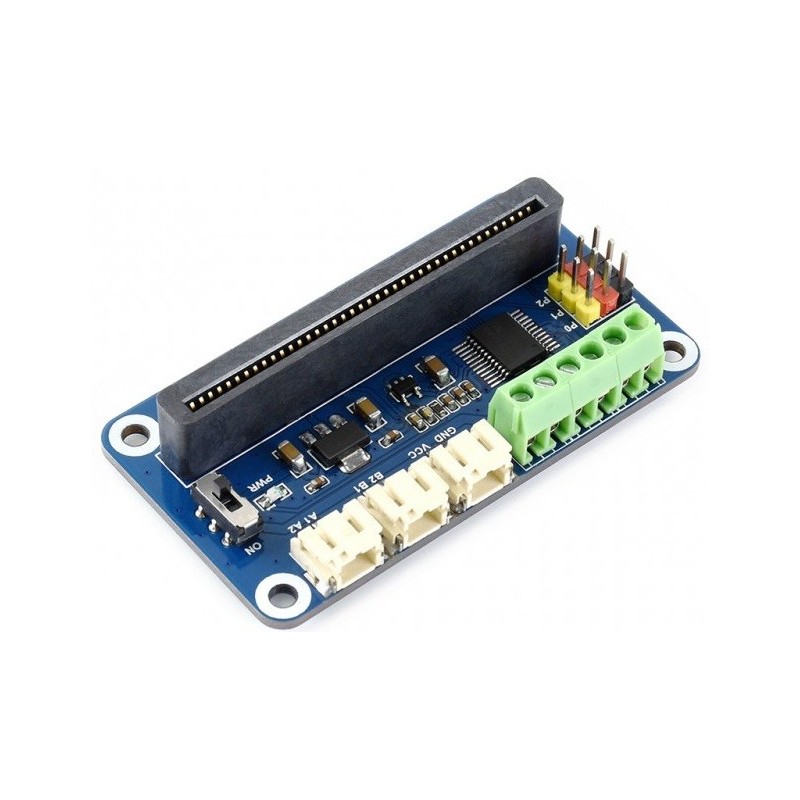

Driver Motores e Servos para micro:bit - WS

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

• micro:bit edge connector, directly pluggable
• 2x DC motor interfaces, 3x servo interfaces
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
• Comes with development resources and manual (micro:bit graphical examples)

Specifications

• Power supply: 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: TB6612FNG
• Dimension: 65mm x 36mm
• Mounting hole size: 3.0mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Motor_Driver_for_micro:bit

PACKAGE CONTENT

Weight: 0.019 kg

Note: micro:bit in the photos is NOT included.

1. Motor Driver for micro:bit x1
