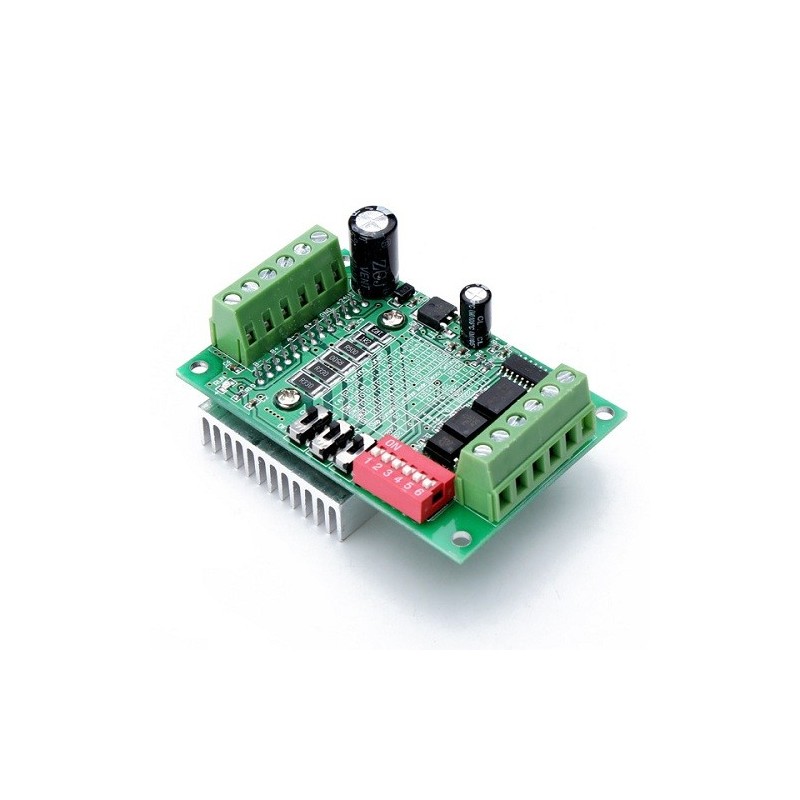

Driver para Motor Passo-Passo 3A - TB6560HQ

: MOT01051
11,95 €
preço com IVA incluído

A placa de driver de motor TB6560 é baseada no chip TB6560AHQ. Aumentará significativamente o torque e a facilidade de configuração de motores maiores. Driver barato e excelente para impressoras CNC ou 3D

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The TB6560 single-motor driver board is based on TB6560AHQ chip. It will significantly increase torque and ease of configuration of larger motors. Cheap and great driver for CNC or 3D printer

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.
  •  thick tooth radiators, good heat dissipation.

SPECIFICATION

  •  Working voltage :DC 10V-35V.
  •  Recommend Switching Power Supply DC24V
  •  6N137 high-speed OptoCoupler , to ensure a high speed without step out.
  •  New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  •  Rated output: ± 3A  ,peak 3.5A.
  •  For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  •  Automatic half-decay.
  •  Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Dimensions: 50 x 75 x 35 (mm)     2 x 3 x 1.4 (inch)



FEATURE

  •  the current level adjustable to meet your various application needs.
  •  the Automatic half-decay adjustable.
  •  6N137 high-speed optical coupling, to ensure a high speed not step out.
  •  thick tooth radiators, good heat dissipation.
MOT01051
