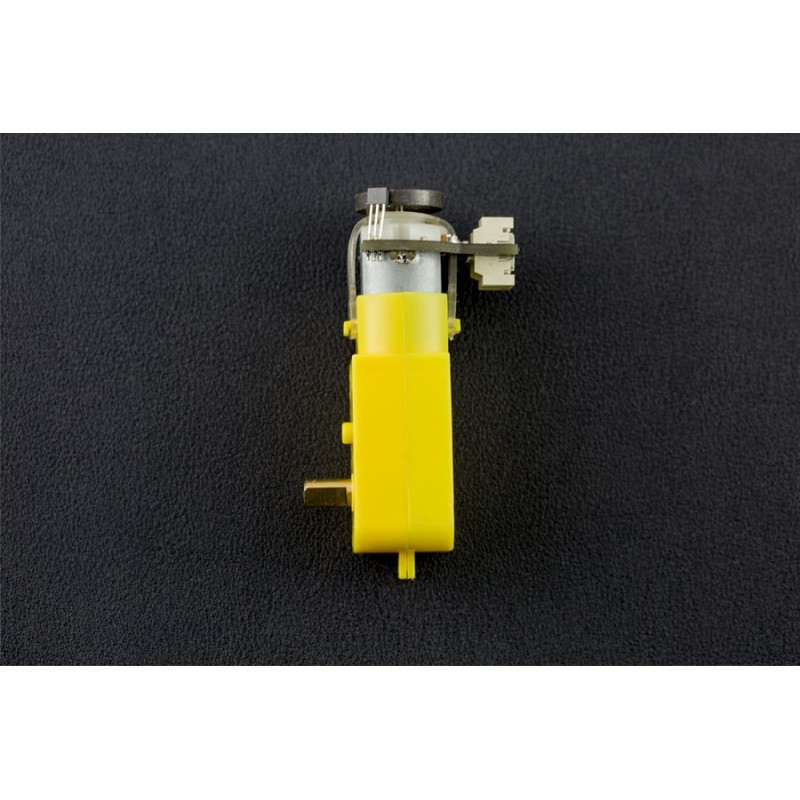

Micro Motor DC com encoder e redutora 120:1 - 6V 160RPM

This is the DFRobot Micro DC geared motor with encoder. It is a motor with a 120:1 gearbox and an integrated quadrature encoder that provides a resolution of 16 pulse single per round giving a maximum output of 1920 within one round. With an Arduino controller and motor driver, applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.

The encoder interface is compatible with DFRobot's Gravity interface.

• Gear ratio: 120:1
• No-load speed @ 6V: 160 rpm
• No-load speed @ 3V: 60 rpm
• No-load current @ 6V: 0.17A
• No-load current @ 3V: 0.14A
• Max Stall current: 2.8A
• Max Stall torque: 0.8kgf.cm
• Rated torque: 0.2kgf.cm
• Encoder operating voltage: 4.5~7.5V
• Motor operating voltage: 3~7.5V (Rated voltage 6V)
• Operating ambient temperature: -10~+60℃
• Weight: 50g

• Product Wiki
• Motor Dimension Drawing

• Micro DC Motor with Encoder-SJ01 x1
• JST 2-Pin motor cable x1
• JST 4-Pin encoder cable x1
