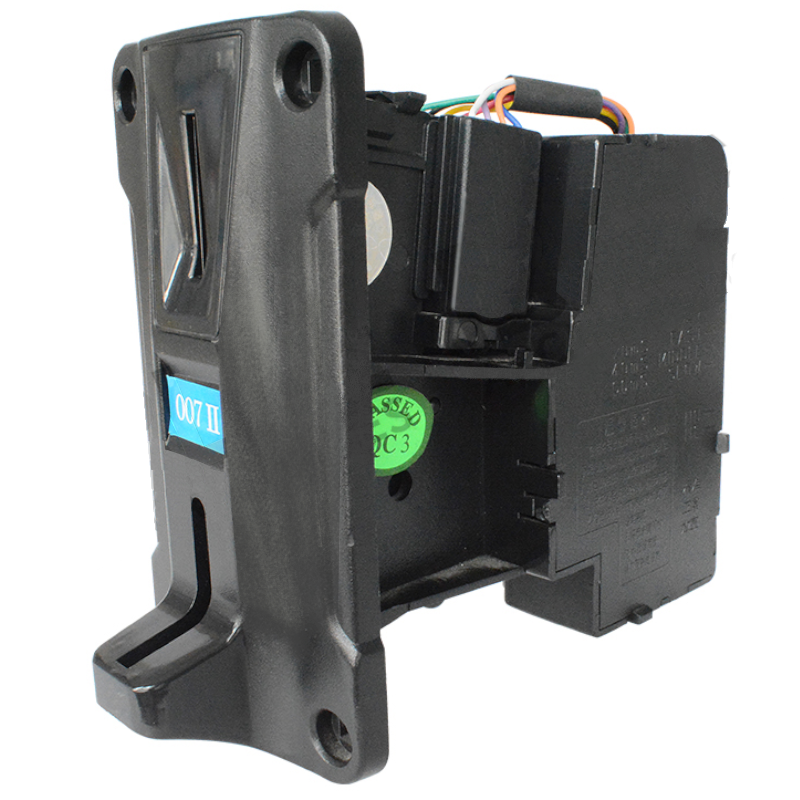

Moedeiro Eletrónico Programável Preto GD-007 - uma moeda

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

1 coin acceptance, handle different countrys coins, pulse output signal,12v input. This product is known as Multi Coin Acceptor Programable for Vending Machines, Coin Machine, Multi Coin Acceptor Vending Machine, Vending Machine Coin Acceptor, Coin Programmable Coin Acceptor Module for Vending Machine, 1 coin acceptance, coin acceptance, intelligent coin acceptor Module, single-coin intelligent vending machine coin.

GD 007 Intelligent Coin Acceptor Product Brief Introduction

• Acceptance: One Coins Only. Press program coin button 3 sec. Program 1 coin 30 times.
• Supply voltage:DC+12V discrepancy 20%,quiescent current less than 40mA,dynamic current less than 400mA.
• Output Mode: Audion Open-collector output
• Supply Voltage: DC+12V discrepancy 20%
• Temperature: -10Celsius degree ~ +60Celsius degree

Features:

• Sample coin comparison type validator
• Programmable for one coin type based on coin material. thickness and size
• Quick-release face plate for easy maintenance
• Black color face plate with push button type coin release

Features/Specs:

• GD 007 Single-coin intelligent validator
• Operating Voltage: 12VDC discrepancy 20%
• Temperature:-10 ~ +50°C
• Coin Diameter:10.8mm To 31mm
• Coin Thickness: 1.2 To 3 mm

Application:

• Vending Machine

Datashhet / User Manual:

• GDY007 – Intelligent Coin Acceptor Module
