ZIP Halo para micro:bit - Kitronik 5625

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

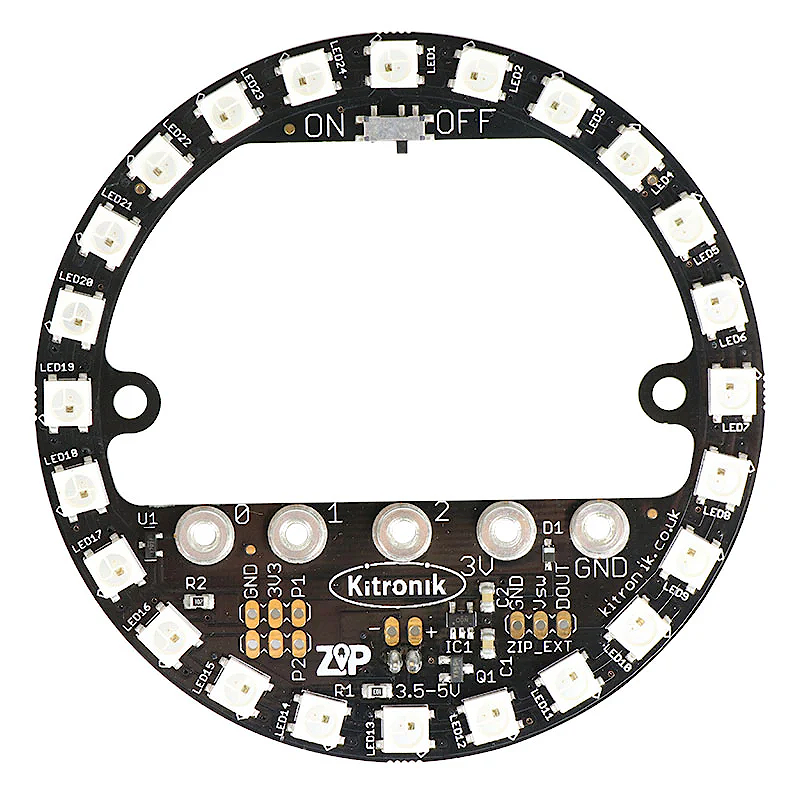

The Halo bolts directly onto the BBC micro:bit using five bolts which are secure and robust. The board also has extension connector pads (0.1” pitch) allowing more ZIP LEDs to be connected. The P1 and P2 micro:bit pins are also broken out to 0.1" pads along with power and GND. This allows for additional connections to low power components such as sensors and switches.

The Halo takes a supply voltage of 3.5V-5V and provides a regulated power supply to BBC micro:bit. Power can be connected using the JST input using a 3xAAA battery holder, LiPo battery, or JST lead. Alternatively, you can solder a power supply directly to the solder pads on the PCB.

The LEDs used are based on the WS2812B part which is compatible with any WS2812B driver code. They can also be coded in the MakeCode Block/Javascript editor.

Note:

• This board does not come with a micro:bit

Features:

• Halo has 24 individually addressable ZIP LEDs.
• Compatible with Adafruit NeoPixel and other WS2812B driver code.
• Supply voltage: 3.5V to 5V.
• Halo bolts directly onto the BBC micro:bit.
• The board also has extension connector pads.

Contents:

• 1 x Halo for the BBC micro:bit.
• 5 x Counter Sunk M3 x6mm Screws.

Dimensions:

• Diameter: 80mm.
• Height: 3.2mm
• Height With micro:bit: 10mm.
• PCB Thickness: 1.5mm.

Video:

Requires:

• 1 x microbit.
• 1 x USB Cable.
• 1 x 3AAA battery holder

Product resources/ datasheet:
