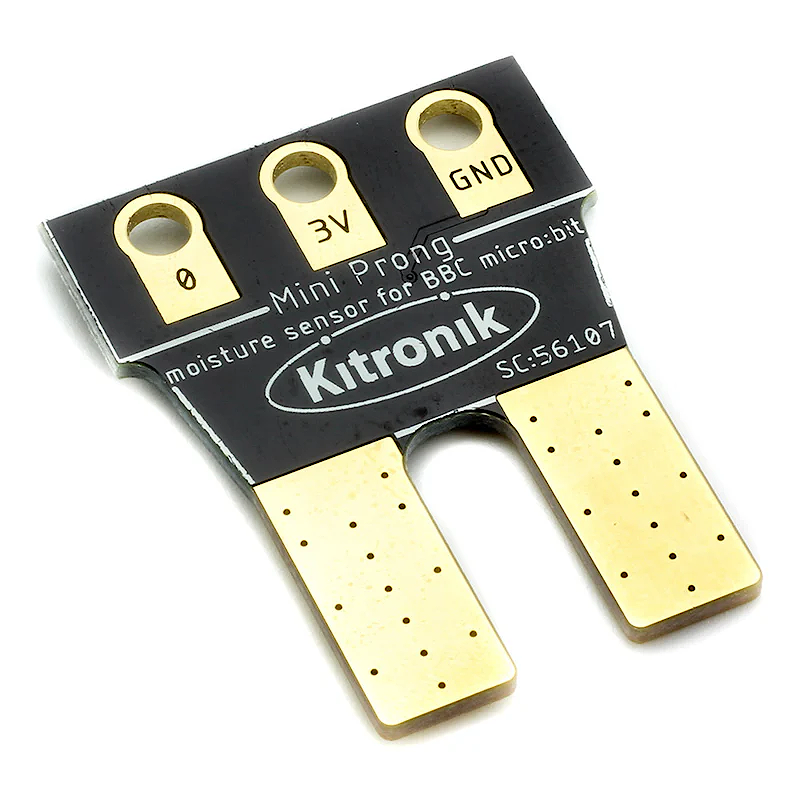

Sensor de humidade do solo 'Mini' Prong para BBC micro:bit - Kitronik 56107

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Mini Prong is powered from the 3V supply of the BBC micro:bit. Use either the USB or JST connector on the BBC micro:bit to power the circuit.

The board has been designed to work with croc-clips, to connect between the Mini Prong and the BBC micro:bit.

When fitted to the Mini Prong moisture sensor, the micro:bit can be coded via any of the micro:bit editors, such as the Microsoft MakeCode editor. The Datasheet at the foot of this page includes technical information and a MakeCode blocks coding example.

Note:

• To ensure that the mini Prong moisture sensor has a long and fulfilling life, it is better to write your code to perform a moisture check every so often rather than continuously. When the check is performed continuously it promotes rapid erosion of the electrodes.

Features:

• Measure soil moisture levels.
• Attach to the micro:bit with crocodile clips.
• Compatible with both BBC micro:bit V1 and BBC micro:bit V2.
• Write code for it with any micro:bit coding editor.

Contents:

• 1 x Prong Soil Moisture Sensor for microbit.

Dimensions:

• Length: 33mm.
• Height: 43mm.
• PCB Thickness: 1.6mm.

Requires:

• 1 x BBC micro:bit or BBC micro:bit V2.
