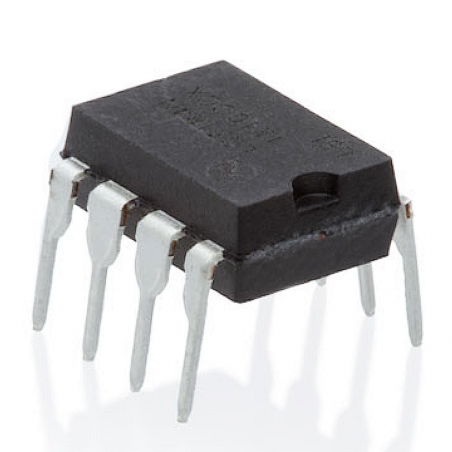

IC de Leitura de Encoder Quadratura Clock Converter LFLS7184N DIP-8

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

The LS7184N ais CMOS quadrature clock converter. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7184N, are converted to a Clock and an Up/Down direction control. These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing of the encoder.

Features:

1. x1, x2 and x4 resolution

2. Programmable output pulse width (200ns to 140 us)

3. Excellent regulation of output pulse width

4. TTL and low voltage CMOS compatible I/O

Documents:

1. Datasheet

2. DIP Outline Drawing

3. SOIC Outline Drawing

4. TSSOP Outline Drawing
