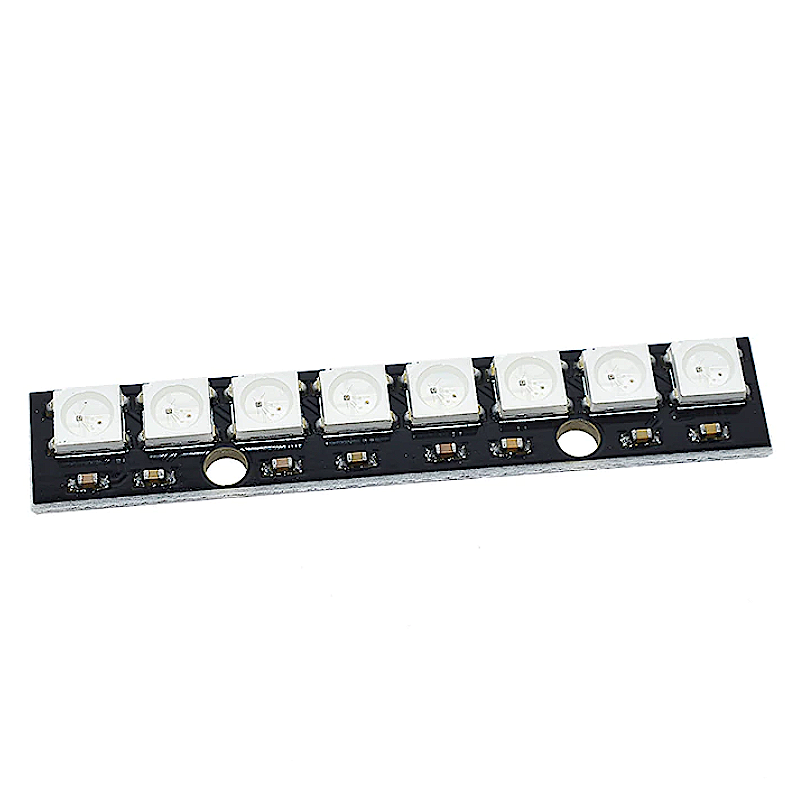

Módulo LED RGB WS2812 5050 Neopixel - BARRA DE 8 LEDS

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Use this 8 Pixel RGB LED Stick to add a bar of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED stick, ring or strip if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 8 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.

Specifications:

1. RGB LED Stick

2. Chipset: WS2812 (Neopixel compatible)

3. Number of LEDs: 8

4. Dimensions: 54mm x 10mm x 3.19mm

5. Can be soldered to conductive thread or wire

6. Pinout: 5V / GND / DIN: Data Input / DOUT: Data Output (connect to the Data Input of the next LED ring or just leave unattached)

Selection Guide (all models):

CEL03108 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 1x LED

CEL03109 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 8 LEDS

CEL03110 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS

CEL03111 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 16 LEDS

CEL03112 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 24 LEDS

CEL03113 - NEOPIXEL RGB LED MODULE WS2812B 5050 - STICK 8 LEDS

LCD03021 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 2X2 MATRIX 4 LEDS

LCD03022 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 4X4 MATRIX 16 LEDS
