Módulo LED RGB WS2812 5050 Neopixel - ANEL 12 LEDS

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

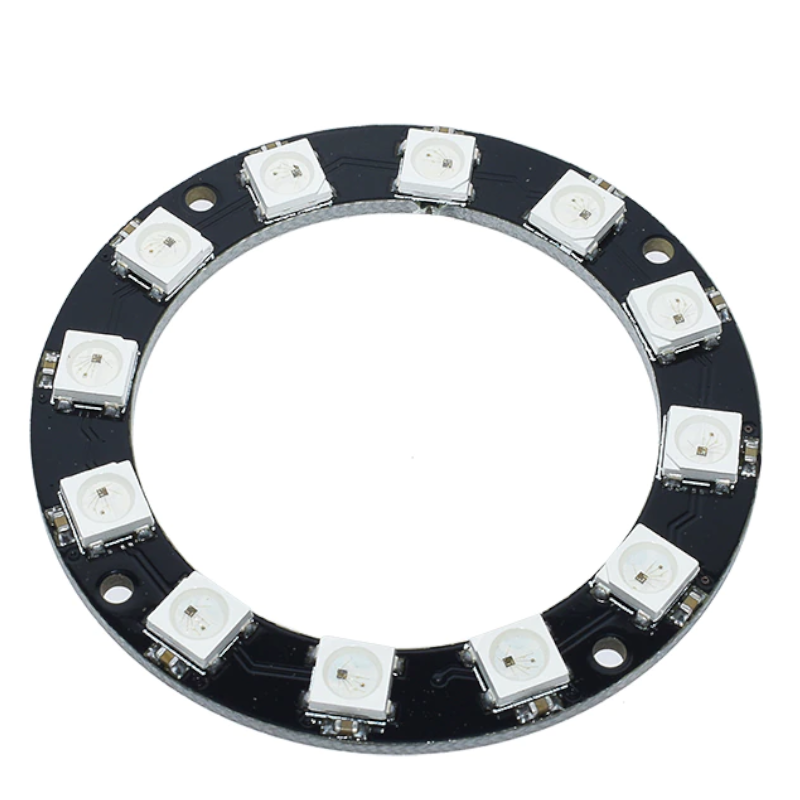

Use this 12 Pixel RGB LED Ring to add a ring of light to your projects. Uses just 1 pin for Input and 1 pin for Output to the next LED ring if you'd like to chain multiple together! Just connect V+ to 5V DC, G to 0V and Data Input to your Arduino or other microcontroller to control the whole ring. Each of the 12 WS2812 RGB LEDs has a chip inside which allows you to control them when chained one after the other.

Specifications:

1. RGB LED Ring

2. Chipset: WS2812 (Neopixel compatible)

3. Number of LEDs: 12

4. Outside Diameter: 50mm

5. Can be soldered to conductive thread or wire

6. Pinout: 5 / GND / DI: Data Input / DO: Data Output (connect to the Data Input of the next LED ring or just leave unattached)

Selection Guide (all models):

CEL03108 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 1x LED

CEL03109 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 8 LEDS

CEL03110 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 12 LEDS

CEL03111 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 16 LEDS

CEL03112 - NEOPIXEL RGB LED MODULE WS2812B 5050 - RING 24 LEDS

CEL03113 - NEOPIXEL RGB LED MODULE WS2812B 5050 - STICK 8 LEDS

LCD03021 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 2X2 MATRIX 4 LEDS

LCD03022 - NEOPIXEL RGB LED MODULE WS2812B 5050 - 4X4 MATRIX 16 LEDS
