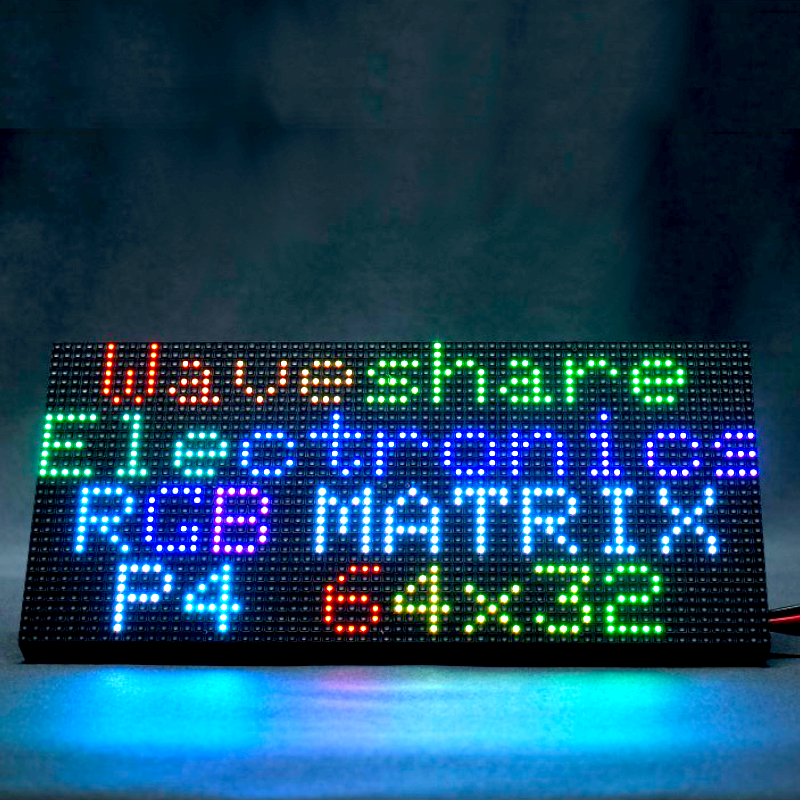

PAINEL MATRIZ DE LEDS RGB 64x32 Pitch 4mm 256x128mm Brilho Ajustável

: LCD03024
28,60 €
preço com IVA incluído

Esta matriz de LED com 2048 LED's RGB no formato de 64×32, suporta Raspberry Pi, Arduino, etc. Podes ajustar o brilho dete painel e para alimentar o mesmo terás de ter uma fonte de 5V capaz de debitar pelo menos 4A.

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.




Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

  1. 2048 individual RGB LEDs, full-color display, adjustable brightness

  2. 64×32 pixels, 4mm pitch, allows displaying text, colorful image, or animation

  3. 256×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

  4. Onboard two HUB75 header, one for controller data input, one for output, chain support

  5. Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on



Specifications

DIMENSIONS

256mm × 128mm

PIXELS

64×32=2048 DOTS

PITCH

4mm

PIXEL FORM

1R1G1B

VIEWING ANGLE

≥160°

CONTROL TYPE

synchronization

DRIVING

1/16 scan

HEADER

HUB75

POWER SUPPLY

5V / 4A (VH4 header input)

POWER

≤20W



Header Definition


PIN

DESCRIPTION

PIN

DESCRIPTION

VCC

5V power input

GND

Ground

R1

R higher bit data

R2

R lower bit data

G1

G higher bit data

G2

G lower bit data

B1

B higher bit data

B2

B lower bit data

A

A line selection

B

B line selection

C

C line selection

D

D line selection

E

E line selection

CLK

clock input

LAT/STB

latch pin

OE

output enable


Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header


Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.



Usage Scenarios

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...



Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.



Selection Guide

PART NUMBER

PIXELS

PITCH

VIEWING ANGLE

POWER SUPPLY

DRIVING

DIMENSIONS

P3-64x32

64×32

3mm

≥160°

5V/2.5A

1/16 scan

192×96

P3-64x64

64×64

3mm

≥160°

5V/4A

1/32 scan

192×192

P4-64x32

64×32

4mm

≥160°

5V/4A

1/16 scan

256×128



Package Content

Weight: 0.255 kg

  1. RGB-Matrix-P4-64x32 LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1
It is recommended to used with a 5V 4A power supply
