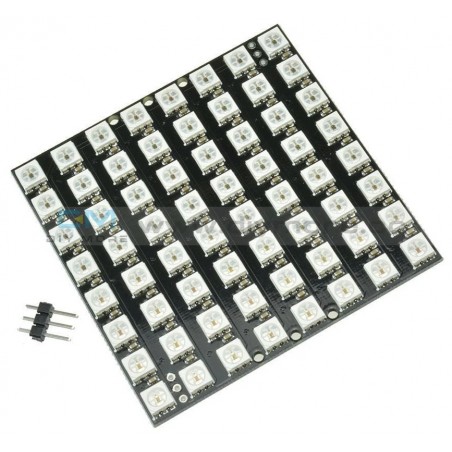

Matriz de 64 LEDs RGB WS2812 - SMD5050

: LCD03020
14,95 €
preço com IVA incluído

Com esta matriz de 64 LEDs 8x8 com comunicação série, poderá controlar através do seu Arduino, STM, ESP ou micro:bit a cor e a intensidade de cada LED de forma independente.

Com LEDs RGB 5050 de formato capazes de produzir 16777216 cores com uma taxa de refrescamento de 400Hz.

A alimentação é de 5Vdc.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Main features:
1. Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
2. IC control circuit and a power LED spot light utility.
3. Control circuit chip with RGB components in a package in 5050,
to form a complete external control pixels.
4. built-in signal shaping circuit, any one pixel after receiving the signal through the waveform
shaping and then output to ensure line waveform distortion will not accumulate.
5. Built-in power-on reset and brown-out reset circuit.
6. trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all
true color display, the scanning frequency is not less than 400Hz.
7. serial cascade interface, through a signal line to complete the receiving and decoding of data.
8. transfer transmission distance between any two points in less than 5 meters without any
additional circuitry.
9. When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
10. data transmission speeds of up to 800Kbps.
11. The color of the light highly consistent, cost-effective.


Package Included:
1*8x8 64 LED Matrix Driver Board

LCD03020
