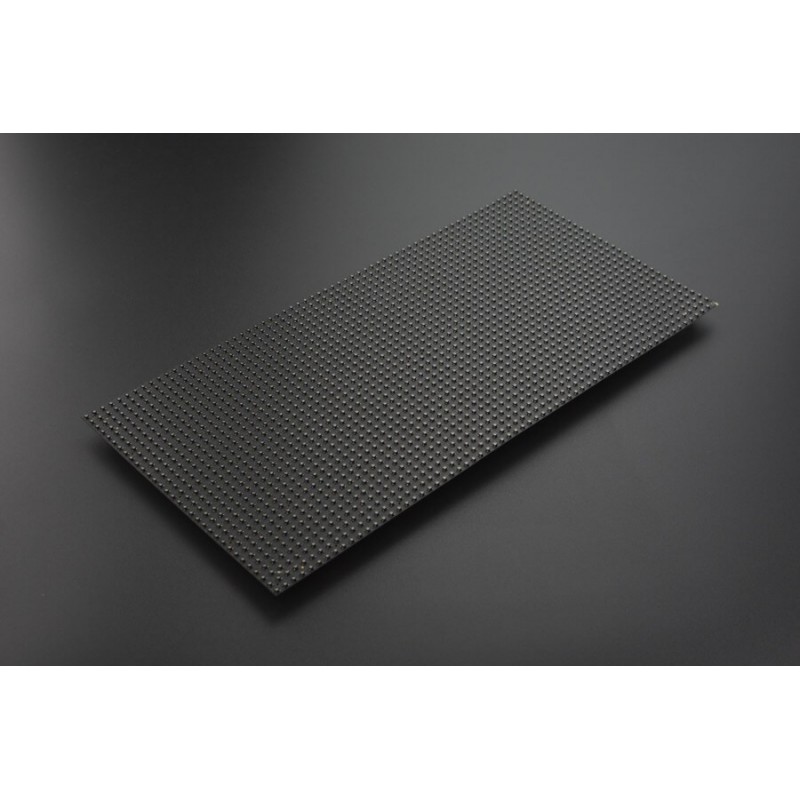

Matriz LED RGB Flexível 64x32 5mm pitch

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

Have you tried other LED arrays but had to give up some projects and ideas because of the thickness and weight of the product? Why not try this 64x32 flexible panel, I guarantee it will be an excellent choice for you. With a size of 320x160mm and flexible feature, it can fulfill all your needs.

lease don’t bend the product over 30° or repeatedly bend it in the case causing product damage. In addition, the same as normal matrix panel, this screen also cannot work with the Uno board. We recommend using microcontrollers with large RAM and high speed to control the LED such as Raspberry Pi, Mega 2560, etc. The LED matrix has two IDC connectors (DATA_IN, DATA_OUT) on the back, which enable you to cascade multiple panels and make a huge screen. Please provide external power supply for the LED matrix during operation, otherwise, the screen display will be unclear or incomplete.

Compared with Flexible RGB LED Matrix-4mm Pitch, this matrix screen has larger Pixel pitch and areas.

SPECIFICATION

• Pixel Pitch: 5mm
• Operating Voltage: 5V
• Maximum Power Consumption: ≤12W
• Repetition Frequency: ≧360Hz
• Refresh Frequency: ≧500Hz
• Viewing Angle: ≧160°
• Resolution: 64x32=2048Dots
• Optimal Visual Distance: 5-58M
• Dimension: 320x160mm/12.60x6.30”

SHIPPING LIST

• 64x32 Flexible RGB LED Matrix-5mm Pitch x1
• IDC to XH2.54 Cable x1
• IDC to IDC Cable  x1
• Power Supply Cable  x1
