• Novo

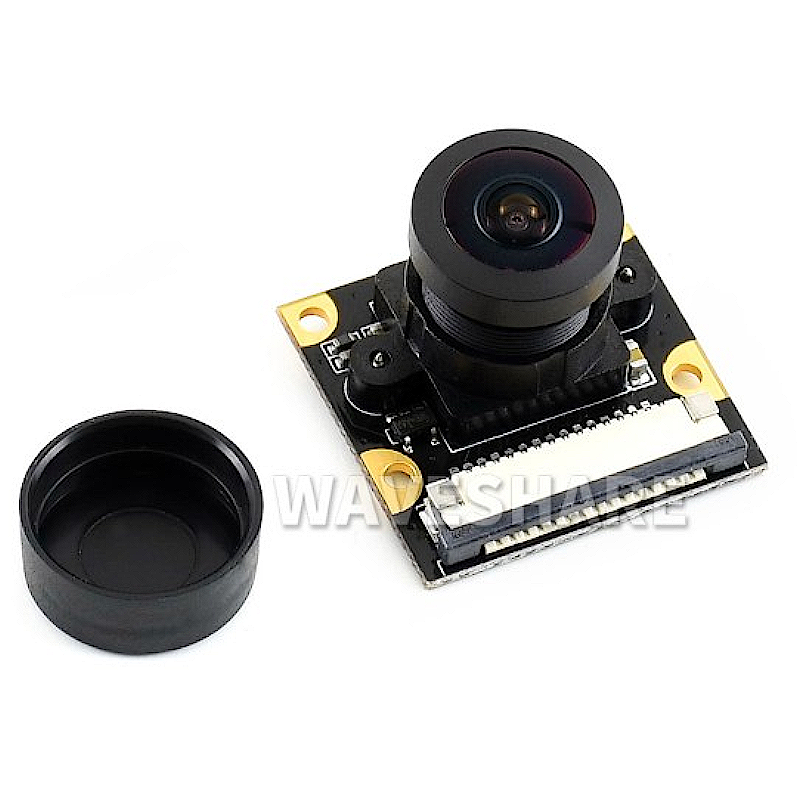

IMX219-160 Câmara 160º FOV para Raspberry Pi e Jetson Nano - Waveshare 16662

:SEN04071
23,90 €
preço com IVA incluído

Esta camara de 8 Megapixeis e de 160º de FOV, é ideal para Jetson Nano, podes usar esta câmara para reconhecimento facial, detecção de linha, reconhecimento de matrículas, etc..

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

NOTA: Este produto inclui apenas o a câmara e um cabo F-F de 15cm. Placas Jetson Nano e Raspberry Pi  não incluídas.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The 8MP camera series is based on IMX219 sensor, options for FOV, night vision function support in specific versions (need to be used with infrared lighting). Compatible with Raspberry Pi series boards, Jetson Nano, and VisionFive2, etc. Suitable for AI projects such as Face recognition, Road mark detection and License plate recognition.



Specifications

Model PIXELS Sensor CMOS size FOV Aperture Focal length (mm) Distorsion Dimension Others
IMX219-160 Camera 8MP IMX219 1/4inch 160° 2.35 3.15 <14.3% 25×24 4 screw holes, used for attachment, provides 3.3V power outpu

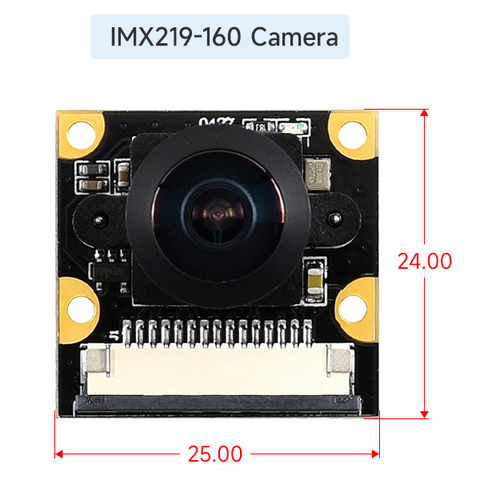

Outline Dimensions



Resources & Services


Wiki: www.waveshare.com/wiki/IMX219-160_Camera



Package Content

Weight: 0.015 kg

  1. IMX219-160 Camera x1

  2. 15-pin FFC (opposite sides contact) x1

1IMX219-160-Camera-1_93.jpg 2FFC-15pin-16cm-opposite_93.jpg

NOTE: The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 50cm
SEN04071
