Camera USB 13MP c/ OIS estabilizador de imagem Micro Gimbal Stabilizer (MGS), autofocus e sensor IMX258

: SEN04053
99,00 €
preço com IVA incluído

Camera 13MP, com estabilizador de imagem, sensor IMX258 etc.

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

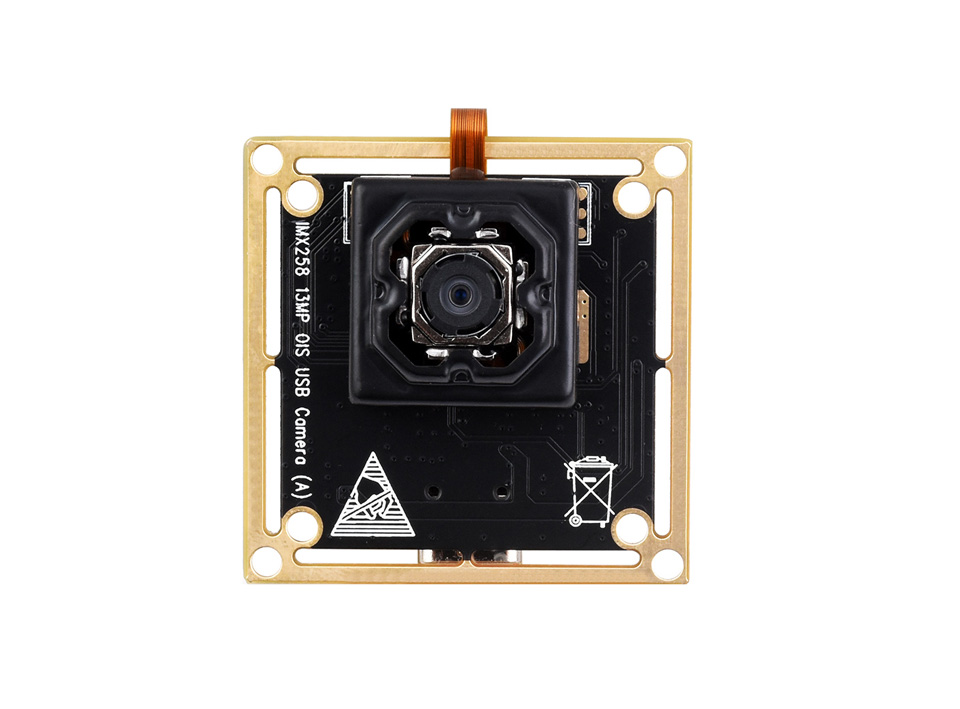

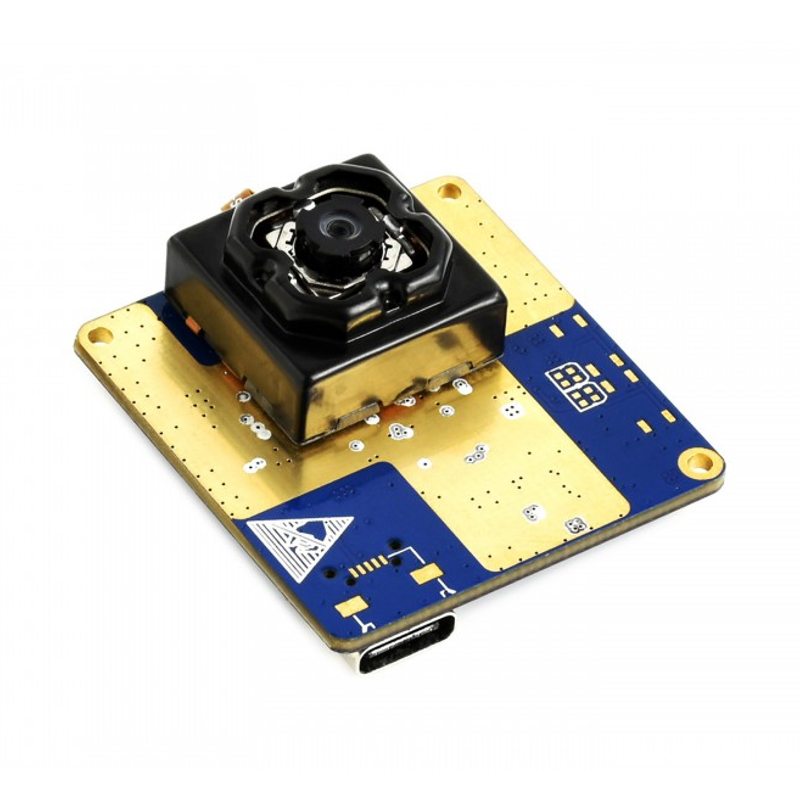

13MP OIS camera module

IMX258 sensor, Optical Image Stabilization, USB port, auto focusing


Specifications

Pixels

13MP

Sensor

IMX258

Stabilization

Micro Gimbal Stabilizer (MGS)

Interface

USB2.0 (UVC 1.0 compliant)

Camera

Sensor size

1/3.06 inch

Aperture (F)

2.4

Focal length (EFL)

2.35 mm

Field of view (FOV)

127°(D) 99.5°(H) 70°(V)

Focusing

auto focusing


Format support

MJPG

Static image resolution

4224 × 3192

Video recording

10 FPS 4192 × 3104 (Full Frame)
20 FPS 3840 × 2160 (4K)
25 FPS 1920 × 1080 (1080P)

Operating voltage

5V ± 5%

Camera size

19.00 × 19.00 × 9.90 mm

Module size

38.00 × 35.80 mm

Supported OS

Windows, Linux, mac OS



Optical Image Stabilization feature

OIS camera (left) VS non-OIS camera (right)

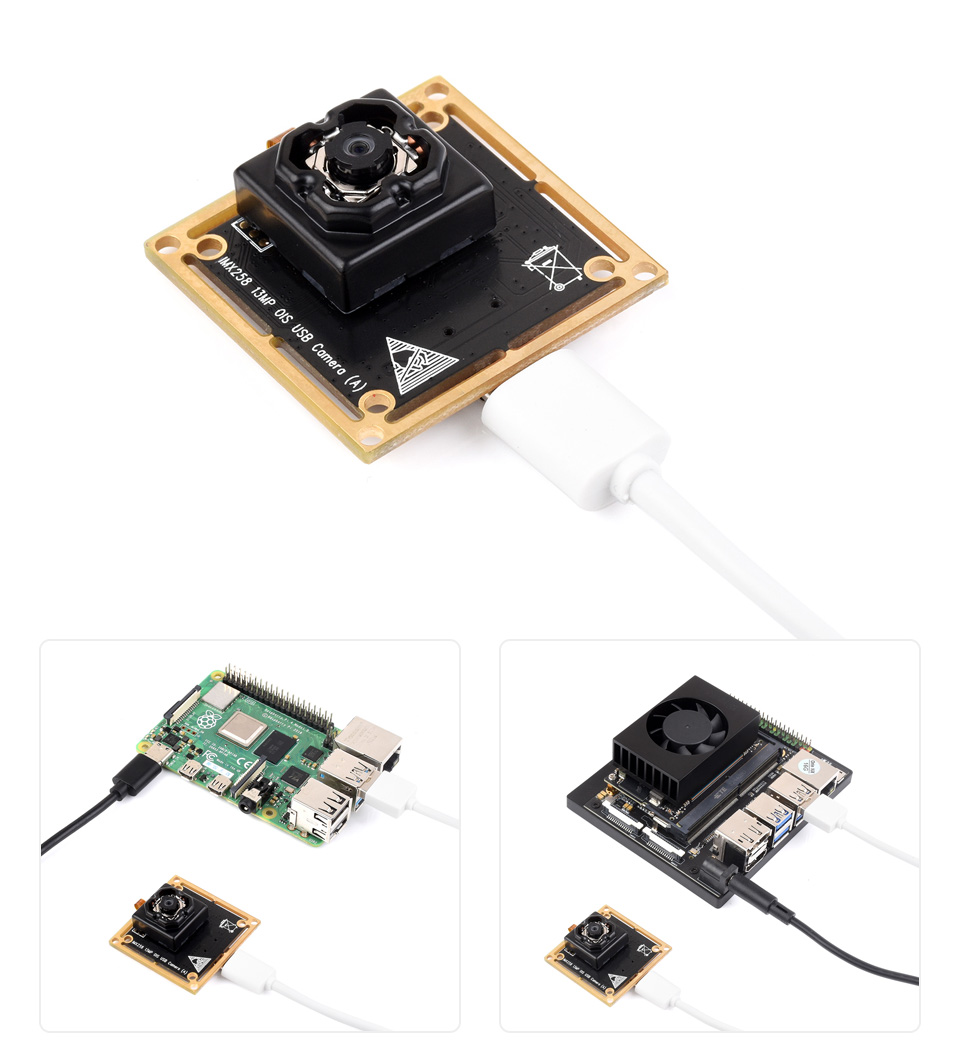

Connecting with USB cable


Outline dimensions


Resources & Services

Wiki: IMX258_13MP_OIS_USB_Camera_(A)



Selection Guide

Part Number

Pixels

Sensor

Best Resolution

Dimension

Field of View

Feature

OV2710 2MP USB Camera (A)

2MP

OV2710

1920x1080

38mmx38mm

145°

Low-light sensitivity

OV5640 5MP USB Camera (A)

5MP

OV5640

2592x1944

18×36mm

135°

Auto focusing

OV5648 5MP USB Camera (A)

5MP

OV5648

2592x1944

9mmx62mm

70°

Small in size

IMX335 5MP USB Camera (A)

5MP

IMX335

2592x1944

38×38mm

106°

Manually focusing

 IMX179 8MP USB Camera (A)

8MP

IMX179

3288x2512

38mmx38mm

145°

HD, Embedded digital mic

 IMX258 13MP OIS USB Camera (A)

13MP

IMX258

4224×3192

38×35.8mm

127°

HD, OISb



Package Content

Weight: 0.046 kg

  1. IMX258 13MP OIS USB Camera (A) x1
SEN04053
