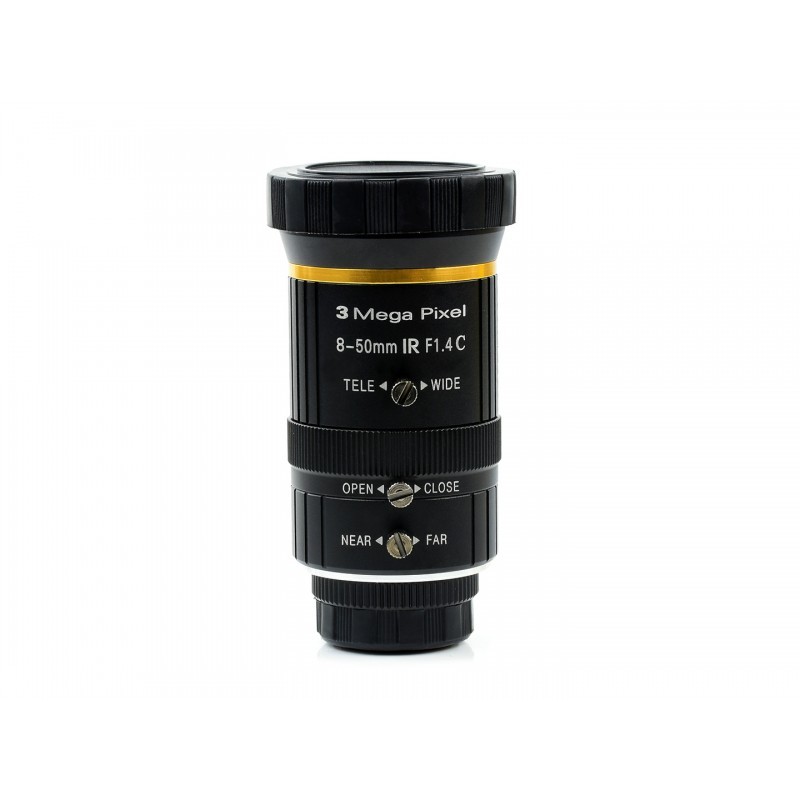

Lente c/ zoom 8~50mm C-Mount 45~5.4º p/ sensores até 1/2.3''

: SEN04050
43,60 €
preço com IVA incluído

Esta é uma lente com zoom de 8-50mm, com FOV ajustável 45º-5.35º, C-MOUNT, compatível com Raspberry Pi

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

8-50MM ZOOM LENS

8-50mm C-Mount Zoom Lens For Raspberry Pi High Quality Camera


Flexible Zoom In & Out

8-50mm Adjustable Focal Length, Flexible Photo Composition At Your Will


Adjustable Focal Length


Fitting To The Camera

Fitting The Lens To Raspberry Pi High Quality Camera (C-CS Adapter Required)


Working With Raspberry Pi

8-50mm-Zoom-Lens-for-Pi-details-9.jpg 8-50mm-Zoom-Lens-for-Pi-details-11.jpg

Outline Dimensions


Lens Selection


6mm Wide Angle Lens

16mm Telephoto Lens

25mm Telephoto Lens

35mm Telephoto Lens

8-50mm Zoom Lens
IMAGE FORMAT 1/2" 1" 2/3" 1" 1/2.3"
FOCAL LENGTH 6mm 16mm 25mm 35mm 8-50mm
APERTURE F1.2 F1.4-16 F1.4-16 F1.7-16 F1.4
MOUNT CS-mount C-mount
ANGLE OF VIEW 63° 1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°
2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°
1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°
45°-5.35°
BACK FOCUS 7.53mm 17.53mm
OPTICAL LENGTH - 67.53mm - - -
DISTORTION - 1"(-0.7%)
1/2"(-0.5%)
1/3"(-0.15%)
0.05% 0.35% -
M.O.D. 0.20m 0.20m 0.25m 0.30m 0.20m
DIMENSIONS Φ30.00 × 34.00mm Φ39.00 × 50.00mm Φ34.00 × 34.00mm Φ35.00 × 34.00mm Φ40.00×68.30mm
OPERATION Manual aperture adjustment
WEIGHT 53g 133.7g 82g 78g 148g

Resources & Services


Wiki: 8-50mm_Zoom_Lens_for_Pi

SEN04050
