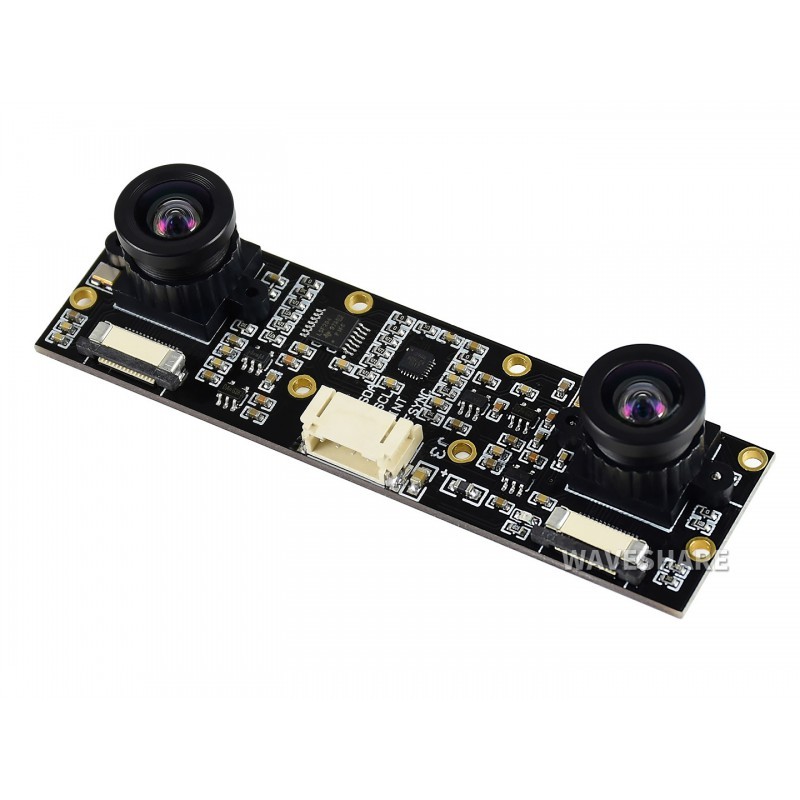

Camera Stereo IMX219-83 com 8MP

: SEN04045
59,90 €
preço com IVA incluído

Este é um módulo de câmara binocular que possui duas câmaras IMX219, 8MP de cada câmara. É adequado para aplicações de visão AI, como visão de profundidade e visão estéreo.

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

Example

IMX219-83 Stereo Camera dimensions

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

Dimensions

IMX219-83 Stereo Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Selection Guide

PRODUCT PIXELS SENSOR INFRARED CAMERA ANGLE OF VIEW (DIAGONAL) (DEGREE) APERTURE (F) FOCAL LENGTH (MM) PCBA SUIT FOR
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+, Jetson Nano
RPi NoIR Camera V2 √ 1 62.2 2.0 3.04 √ Raspberry Pi, CM3/3+, Jetson Nano
IMX219-77 Camera × 1 77 2.0 2.96 √ CM3/3+, Jetson Nano
IMX219-77IR Camera √ 1 77 2.0 2.96 √ CM3/3+, Jetson Nano
IMX219-120 Camera × 1 120 2.2 1.88 √ CM3/3+, Jetson Nano
IMX219-160 Camera × 1 160 2.35 3.15 √ CM3/3+, Jetson Nano
IMX219-160IR Camera √ 1 160 2.35 3.15 √ CM3/3+, Jetson Nano
IMX219-170 Camera × 1 170 2.0 2.2 √ CM3/3+, Jetson Nano
IMX219-200 Camera × 1 200 2.0 0.87 √ CM3/3+, Jetson Nano
IMX219-D160 × 1 160 2.35 3.15 × Raspberry Pi, CM3/3+, Jetson Nano
IMX219-83-Stereo-Camera × 2 83 - 2.6 √ CM3/3+, Jetson Nano (B01)



PACKAGE CONTENT

Weight: 0.023 kg

  1. IMX219-83 Stereo Camera x1
  2. FFC (2PCS) x1
  3. PH2.0 4PIN wire x1

1IMX219-83-Stereo-Camera-1_93.jpg 2IMX219-83-Stereo-Camera-FFC_93.jpg 3IMX219-83-Stereo-Camera-4pin-wire_93.jpg
