Modulo SX1262 LoRa Node p/ Raspberry Pi Pico, LoRaWAN 868MHz

: COM05086
18,95 €
preço com IVA incluído

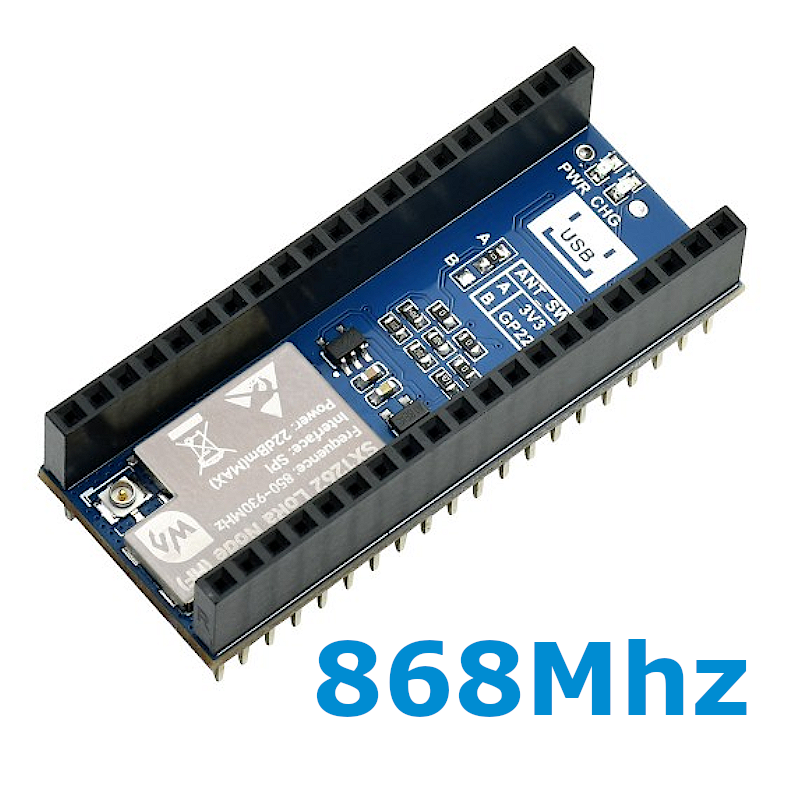

O Pico-LoRa-SX1262-868M é um módulo de expansão LoRa projetado para Raspberry Pi Pico, que suporta protocolo LoRaWAN e banda EU868. É permitido conectar os servidores TTN, TTS através de um gateway LoRa para usar o serviço LoRa Cloud de forma rápida e fácil.

Esta é a versão de 868Mhz deste produto, se preferires a versão de 433Mhz é só consultares a seguinte referência COM05091.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Nota: Raspberry Pi Pico não incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The Pico-LoRa-SX1262 is LoRa node expansion module designed for Raspberry Pi Pico based on SX1262 with better performance than the SX127X series. The LoRa modulation technology solves the balancing problem between transmission distance, interference immunity, and power consumption that traditional solutions aren't able to deal with.

It supports LoRaWAN protocol, which allows it to connect the TTN, ChirpStack servers through a LoRa gateway to use LoRa Cloud service fast and easily.

  1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

  2. Supports LoRaWAN protocol, different frequency bands are available

  3. Adopts active temperature compensation crystal oscillator, ensuring stable long-term operating in extreme high/low temperature conditions

  4. Supports FSK, GFSK, LoRa modulations, outstanding block resistance and ultra long communication distance

  5. PH1.25 battery header and recharge controller, allows connecting rechargeable Lithium battery

  6. High receiving sensitivity (up to -148dBm), programmable emitting power (up to 22dBm)

  7. Supports preamble detection, with CRC, up to 256 bytes data packet engine

  8. Comes with development resources and manual (example in C)



Specifications

Frequency band433M
(410~525MHz)		868M
(863~870MHz)		915M
(902~930MHz)
RFID SX1262
Emiting power 22dBm
Emiting current 107mA@22dBm 118mA@22dBm
Receiving current 5.3mA@125KHz
Modulation LoRa/(G)FSK
Operating voltage 3.3V
Communication bus SPI
Operating temperature -40 ~ 85℃
Dimensions 21.00 × 52.00mm


Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico


NOTE: Raspberry Pi Pico is NOT included.




What's on board


  1. Raspberry Pi Pico header

  2. Status indicators

    1. PWR: power indicator
    2. CHG: recharge indicator

  3. RF switch control

    1. controlled by high level
    2. controlled by GPIO22

  1. MCP73831 recharge IC

  2. SX1262 module

  3. IPEX 1 antenna connector

  4. Power switch

  5. PH1.25 battery header



Pinout definition


Application examples

Industrial control, intelligent home, and data acquisition...




Outline dimensions



Resources & Services




Package Content

Weight: 0.033 kg

  1. SX1262 LoRa Node Module x1

  2. 3.7V 600mAh Li-po battery x1

  3. Antenna 2DB x1

  4. IPEX1 to SMA wire x1

1Pico-LoRa-SX1262-868M-3_220.jpg23.7V-600mAh-battery-MX1.25_93.jpg3Antenna-2DB-868mhz_93.jpg4IPEX-1-to-SMA-17cm_93.jpg
