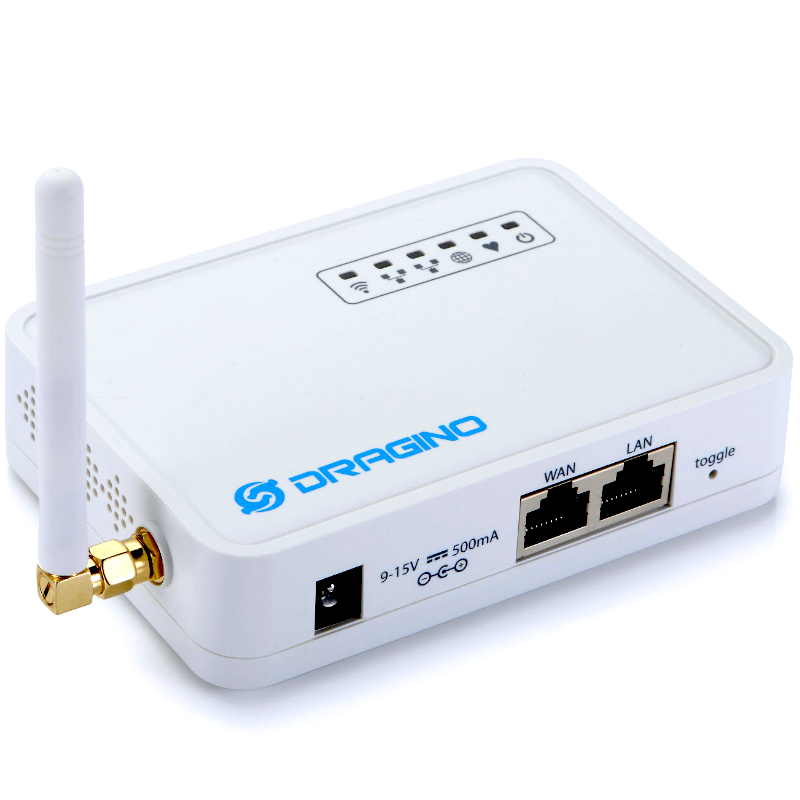

Dragino Gateway LoRa LG01-N c/ 1 canal 868MHz

: COM05075
89,90 €
preço com IVA incluído

LG01-N é um gateway LoRa de canal único de código aberto. Ele permite que você conecte a rede sem fios LoRa a uma rede IP via WiFi, Ethernet ou celular 3G / 4G via módulo LTE opcional. o LoRa wireless permite que os usuários enviem dados e alcancem alcances extremamente longos com baixas taxas de dados. O LG01-N fornece comunicação de alcance ultralongo e alta imunidade a interferências, minimizando o consumo de corrente.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

LG01-N has rich internet connection method  such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

LG01-N can be used to provide a low cost IoT wireless solution to support 10~100 sensor nodes.

LG01-N can support mutiply working mode  such as: MQTT mode, TCP/IP Client  mode to fit different requirement for IoT connection.

Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Flexible protocol to connect to IoT servers
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
  • Failsafe design provides robustly system
  • 1 x SX1276/SX1278 LoRa module
  • Limited support in LoRaWAN/ Support Private LoRa protocol
  • Support upto 300 nodes
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa: 5~10 km. Density Area:>500m



Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc
  • LoRaWAN Reapeter



Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB



Cellular 4G LTE (optional):

  • Quectel EC25 LTE module ( Clink the link to find the right model for your region)
  • Micro SIM Slot
  • Internal 4G Antenna + External 4G Sticker Antenna.
  • Up to 100Mbps downlink and 50Mbps uplink data rates
  • Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems



Interfaces:

  • 10M/100M RJ45 Ports x 2
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • USB 2.0 host connector x 1
  • USB 2.0 host internal interface x 1
  • 1 x LoRa Interface



Documents:



More info LG01-XXX-YYY

XXX: Frequency Band

  • 433: For Bands: EU433, CN470
  • 868: For Bands: EU868,IN865
  • 915: For Bands: US915,AU915,AS923,KR920

YYY: 4G Cellular Option

  • EC25-E: EMEA, Korea, Thailand, India.
  • EC25-A: North America/ Rogers/AT&T/T-Mobile.
  • EC25-AU: Latin America, New Zeland, Taiwan
  • EC25-J: Japan, DOCOMO/SoftBank/ KDDI
