Módulo LoRa Ra-01 SX1278 / Longo Alcance até 10Km / 433MHz

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The series of modules RF chip SX1278 mainly uses LoRa remote modem for ultra-long distance spread Letter, strong anti-interference, to minimize current consumption. With the help of SEMTECH's LoRa ™Lee modulation technology, SX1278 has a high sensitivity of more than -148dBm, +20dBm power output,Transmission distance, high reliability. At the same time, relative to the traditional modulation technology, LoRa modulation technology in the anti-Blocking and selection also has a clear advantage to solve the traditional design can not take into account the distance,Anti-jamming and power consumption problems. Ra-01, Ra-02 operating frequency of 410-525MHz, support for China and Southeast Asia.

Notes:

Power supply: DC1.8-3.7V(3.3V)
Chip: SX1278
Frequency: 433Mhz
Operating temperature: -40~+85°C

Features:

• LoRa ™ spread spectrum modulation technology
• Super-far-distance communication 10KM
• +20dBm-100mW voltage constant when the RF power output
• High sensitivity: low to -148dBm
• Half duplex SPI communication
• Programmable bitrates up to 300kbps
• Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation
• 127dB RSSI dynamic range
• Automatic RF signal detection, CAD models and ultra high-speed AFC
• With the CRC, up to 256 bytes of packet engine
• Small double stamp hole size SMD package
• Shielding shell
• Spring antenna (Ra-01)

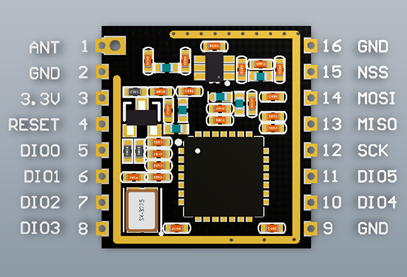

PinOut:


Package included:

1 x Ra-01 Smart Electronics SX1278 LoRa Spread Spectrum Wireless Module
1 x Spring antenna
