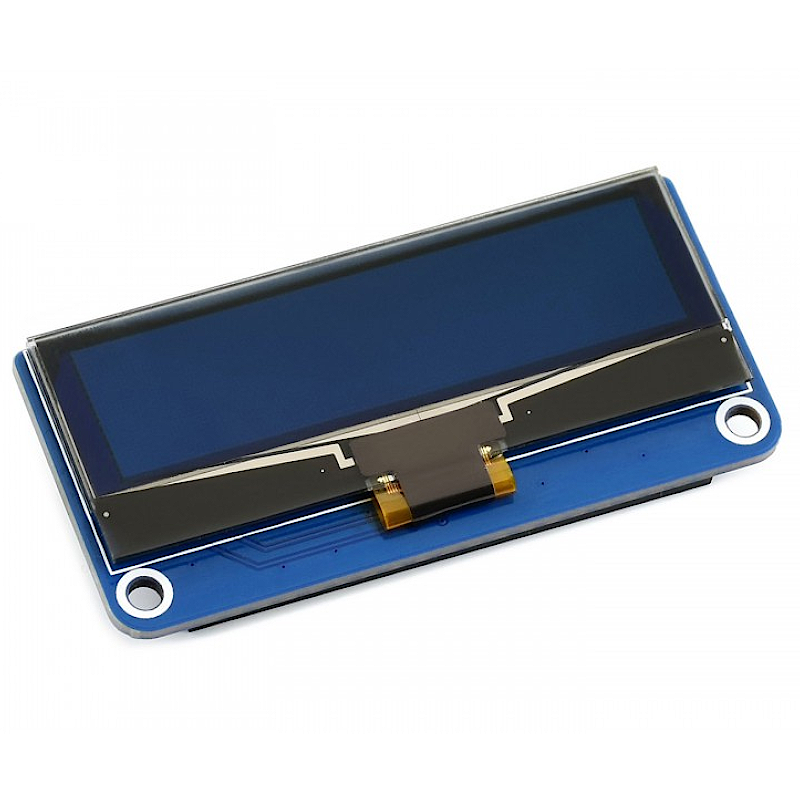

128x64, 2.23inch OLED display HAT para Raspberry Pi - Waveshare 17009

:LCD01158
13,90 €
preço com IVA incluído

Este é um ecrã OLED de 2,23 polegadas com um controlador. Podes adicionar este ecrã diretamente ao teu Raspberry Pi através do header de 40 pinos, ou então  ligá-lo a outra plataforma de hardware através das interfaces I2C e SPI. O interface do OLED HAT de 2,23 polegadas é o SPI por defeito, mas também pode mudar para I2C soldando as resistências na parte de trás do OLED.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.



Features

  1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

  2. Optional interfaces: SPI (default), or I2C, configured via onboard resistor

  3. Brings control pins for host boards like Arduino/STM32

  4. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)



Specifications

  1. Driver: SSD1305

  2. Interface: SPI / I2C

  3. Display size: 2.23inch diagonal

  4. Display color: white

  5. Resolution: 128×32

  6. Viewing angle: >160°

  7. Power supply voltage: 3.3V/5V

  8. Logic level: 3.3V



Interface

SYMBOL

Raspberry Pi PIN (BCM)

DESCRIPTION

VCC

3V3/5V

Power input

GND

GND

Ground

DIN

MOSI

SPI data input

CLK

SCLK

SPI clock input

CS

CE0

Chip selection, low active

DC

P24

Data/Command selection (high for data, low for command)

RST

P25

Reset, low active



Dimensions

2.23inch OLED HAT dimensions



Development Resources

Wiki : www.waveshare.com/wiki/2.23inch_OLED_HAT



Package Content

Weight: 0.019 kg

  1. 2.23inch OLED HAT x1
  2. RPi screws pack (2pcs) x1
