Emissor Laser Cruz - 5mW 650nm Vermelho
  • Emissor Laser Cruz - 5mW 650nm Vermelho
  • Emissor Laser Cruz - 5mW 650nm Vermelho
  • Emissor Laser Cruz - 5mW 650nm Vermelho

Emissor Laser Cruz - 5mW 650nm Vermelho

: CEL03040
9,95 €
preço com IVA incluído

Este diodo laser é de Classe IIIa com uma potência de emissão de 5mW e comprimento de onda vermelho (650nm). Pode ser alimentado entre 2.8V e 5.2V.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

  • DESCRIPTION

    You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.

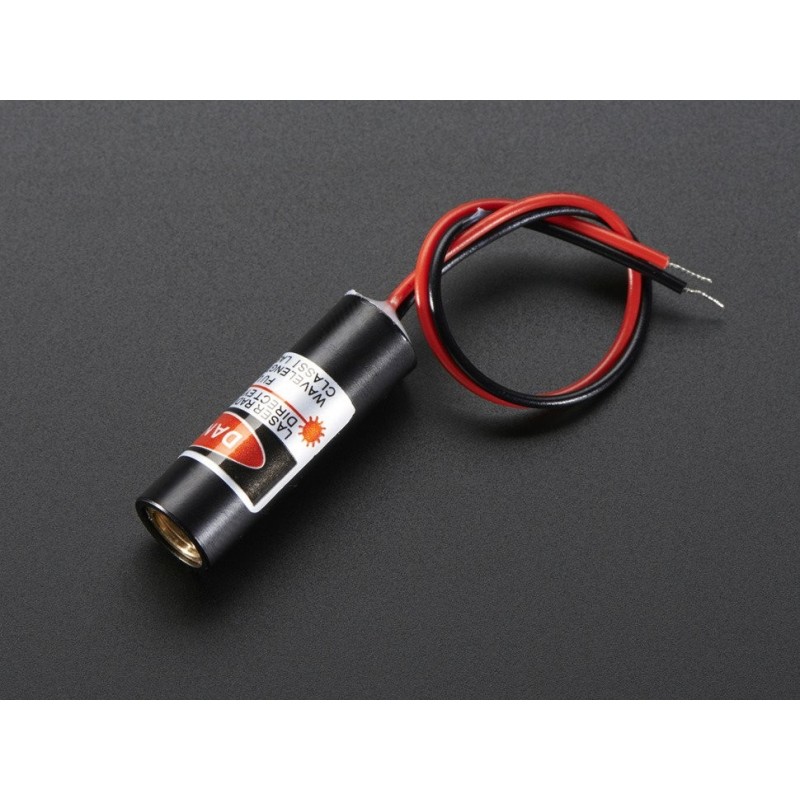

    This particular module has a lens attached that will turn the dot into a cross. This makes it particularly good for laser-vision guidance, targeting, and more! Simply connect power to the red and black wires and you will be lasing in no time.

    The cross has a beam spread of approximately 60° in both directions. So from a distance of 5cm, the cross is 5cm tall and 5cm wide. The cross ends have a sharp cutoff so the shape is very clearly defined.

    Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

  • TECHNICAL DETAILS

    • Weight: 11.85g
    • Diameter: 10.11mm
    • Length: 32.82mm
    • Wire length: 100mm
    • 650nm wavelength
    • 2.8 - 5.2V DC voltage input
    • 25mA max current draw
    • Operating temperature -10°C to 40°C;
CEL03040
