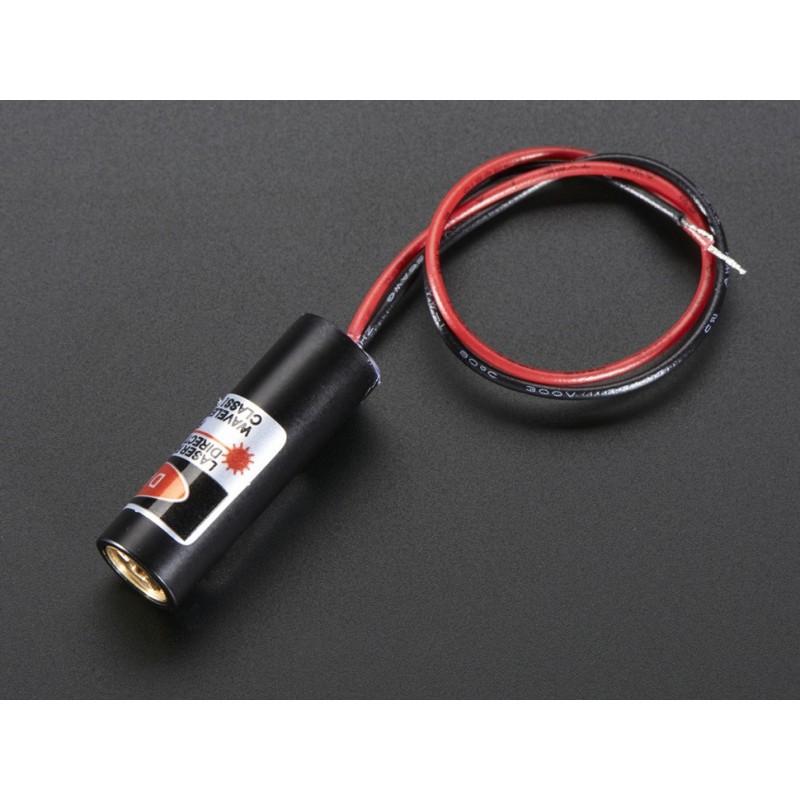

Emissor Laser Ponto - 5mW 650nm Vermelho
  •  Emissor Laser Ponto - 5mW 650nm Vermelho
  •  Emissor Laser Ponto - 5mW 650nm Vermelho
  •  Emissor Laser Ponto - 5mW 650nm Vermelho

Emissor Laser Ponto - 5mW 650nm Vermelho

: CEL03050
8,50 €
preço com IVA incluído
Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Description


You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time.

Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia pageTechnical Details


  • Weight: 6.3g
  • Diameter: 10mm / 0.4"
  • Length: 31mm / 1.2"
  • Wire length: at least 100mm / 3.9"
  • 650nm wavelength
  • 2.8 - 5.2V DC voltage input
  • 25mA max current draw
  • Operating temperature -10°C to 40°C;

CEL03050
