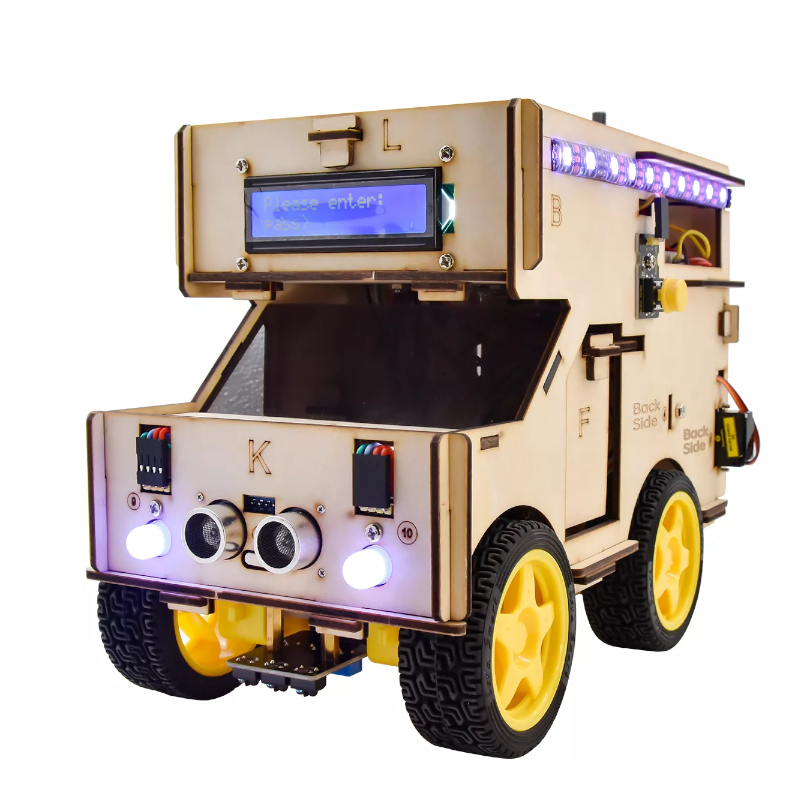

Kit Carro-Casa STEAM p/ Arduino (Android/IOS) - Keyestudio KS0507

: ROB05043
139,00 €
114,00 € Poupe 25,00 €
preço com IVA incluído

Já imaginaste uma casa inteligente sobre rodas? Pois bem, com este Kit o teu desejo tornou-se realidade.

Este carro-casa irá ser uma grande ajuda se a tua ambição for perceber melhor os conceitos de programação e mecânica. Podes assemblar este Kit sem precisares de o soldar e controlar o mesmo por Bluetooth, quer o teu dispositivo seja Android ou IOS. Além disso, este robô/casa, possui sensores de temperatura, humidade, seguidor de linha, LCD's e muito mais.

Para te ajudar na montagem e programação do robô, visita a Wiki Page.

Nota: Pilhas não incluídas

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

When it comes to programming, many think it difficult. However, KEYES group issues a smart RV kit to cope with this problem.
This is low cost, easy-to-build and open source programming kit-----smart RV.
It integrates smart home and robot car. In addition, it helps you absorb the knowledge of programming like electronics, control logic and computing and science.
In compliance with the tutorial, you can create your own robot by boards, slot connection and wiring. In the assembly process, the detailed projects will guide you to learn the working principle of sensors and modules.
What’s more, it a has temperature humidity sensor and an LCD display except LED, line tracking sensor, ultrasonic sensor, Bluetooth module and motor driving modules.
Should you are interested in STEM and code programming, you can customize your RV by altering code and adding extra modules. That sounds entertaining, right? Let’s get started



Features:

Working voltage: 5V
Input voltage: 7-12V
Maximum output current: 3A
Maximum power dissipation: 15W
Motor speed: 200rpm (4.5V)
Motor driving form: TB6612 chip drive
Ultrasonic sensing angle: <15 degrees
Ultrasonic detection distance: 2cm-400cm
Bluetooth remote control distance : 50 meters (measured)
Bluetooth APP control: support Android and iOS system
Multi-purpose function：obstacle avoidance, line tracking, Bluetooth control, ultrasonic follow, smart sensation and so on.
Easy to build：Slot connection and without soldering circuit
Novel style：Adopt strong wood board, acrylic board, RGB and lcd1602 modules.
High extension：configure motor driving chip, preserve IIC, UART and SPI port and expand other sensor and module.
Basic programming learning：use C language and code



Documents:

format,webpformat,webpformat,webpformat,webpformat,webpformat,webpformat,webpformat,webpformat,webpformat,webp

ROB05043
