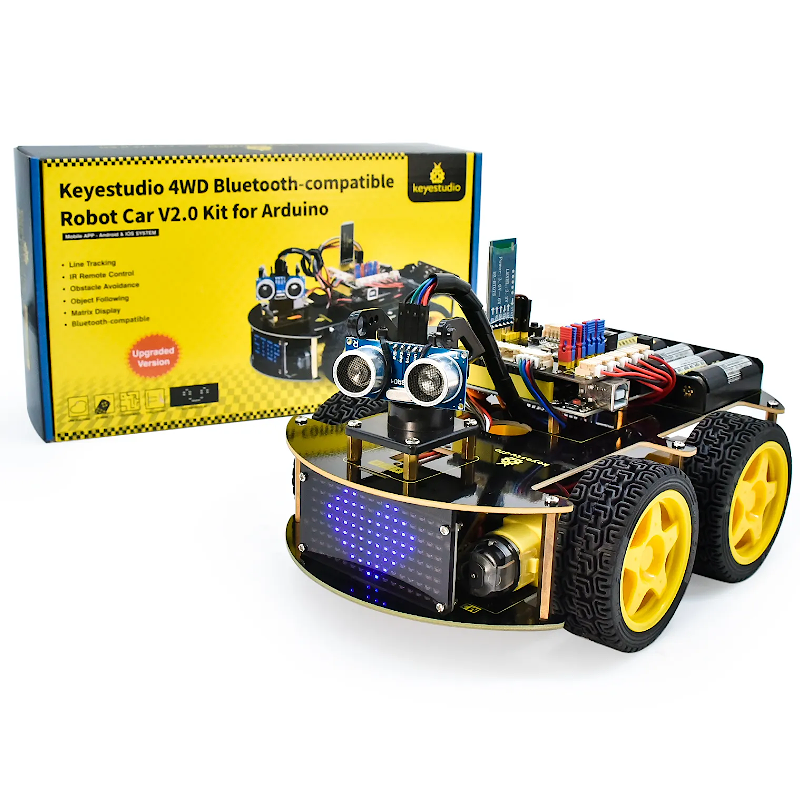

Kit 4WD BT Carro Robô V2.0 - Keyestudio KS0559

: ROB05038
65,00 €
preço com IVA incluído

Este Robô para montagem é capaz de desempenhar várias tarefas, como seguir linha, deteção e desvio de objetos, etc.. Para além disso podes controlar este Robô via Bluetooth ou ainda com um comando remoto. Este Kit é ideal caso queiras desenvolver as tuas capacidades tanto a nivel de programação como a nível mecânico.

Se quiseres saber mais sobre este produto, bem como consultar o seu manual de montagem, visita a sua Wiki Page.

Nota: Pilhas não incluídas.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Tutorials:

online Tutorial:KS0559
download code and library:KS0559



Description:

The newly upgraded 4WD Multi-purpose car is one of the most popular Arduino sets. It not only has a beautiful appearance but also powerful functions. In addition to the usual functions of line tracking, obstacle avoidance and remote control, it also uses facial expressions to make lovely expressions. Furthermore, you empower to expand your own projects, or add other sensors to complete your exploration.

Most of the components are connected via screws and copper pillars, thereby you can build your own robot through a few simple assembly steps. What’s more, the basic knowledge such as line tracking, obstacle avoidance sensors, ultrasonic ranging, Bluetooth communication, motor drivers as well as IR remote controls are accessible for us to learn. This product boasts 17 learning projects, from simple to complex, which will guide you to make an Arduino robot.


Features:

  1. Multi-purpose function: Obstacle avoidance, following, IR remote control, Bluetooth control, confined with a circle, gravity control as well as facial emoticons display.

  2. Simple assembly: No soldering circuit required, simple assembly.

  3. Sturdy construction: 4WD construction, 4 premium motors and wheels.

  4. High extension: It can expand other sensors and modules via a motor driver expansion board

  5. Multiple controls: IR remote control, App control(iOS and Android system)

  6.   6.Basic programming:C language code of Arduino IDE.



Specification:

  1. Working voltage: 5V

  2. Input voltage: 6-9V

  3. Maximum output current: 2A

  4. Maximum power dissipation: 25W (T=75℃)

  5. Motor speed: 5V 200 rpm

  6. Motor drive mode: DRV8833 motor driver

  7. Ultrasonic induction angle: <15 degrees

  8. Ultrasonic detection distance: 2cm-400cm

  9. Infrared remote control distance: 10M (measured)

  10. Bluetooth remote control distance: 50M(measured)

  11. Bluetooth control: support Android and iOS system
