Kit de Conetores JST (2.0mm)

: CON01037
8,50 €
preço com IVA incluído

Inclui Houssings e 2, 3 e 4 contatos (2 unidades de cada), assim como os headers (20 unid de cada)  e contatos de crimpar(100 unidades).

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Introduction

This kit includes PHR-2，PHR-3 and PHR-4 housing (20 units each)， through-hole type shrouded header （20 units each）and crimp contact (100 units).


Specification
  • Pitch:2.0mm
  • Current rating:2A AC,DC (AWG #24)
  • Voltage rating:100V AC,DC
  • Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
  • Contact resistance：Initial value/10m Ω max.
  • After environmental testing/20m Ω max.
  • Insulation resistance：1000M Ω min.
  • Withstanding voltage：800V AC/minute
  • Applicable wire：AWG#32~#24
  • Applicable PC board thickness：0.8mm~1.6mm

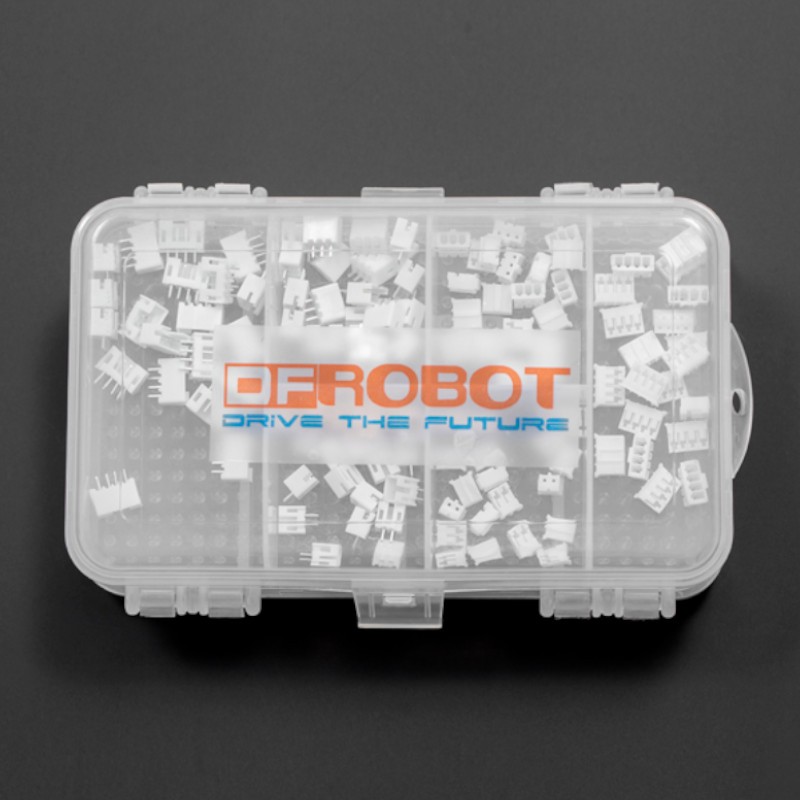

Shipping List
  • PHR-2 housing*20
  • PHR-3 housing*20
  • PHR-4 housing*20
  • B2B-PH-K-S through-hole type shrouded header *20
  • B2B-PH-K-S through-hole type shrouded header *20
  • B2B-PH-K-S through-hole type shrouded header *20
  • crimp contact*100
  • Two-sided Compartment Parts Box *1
CON01037
