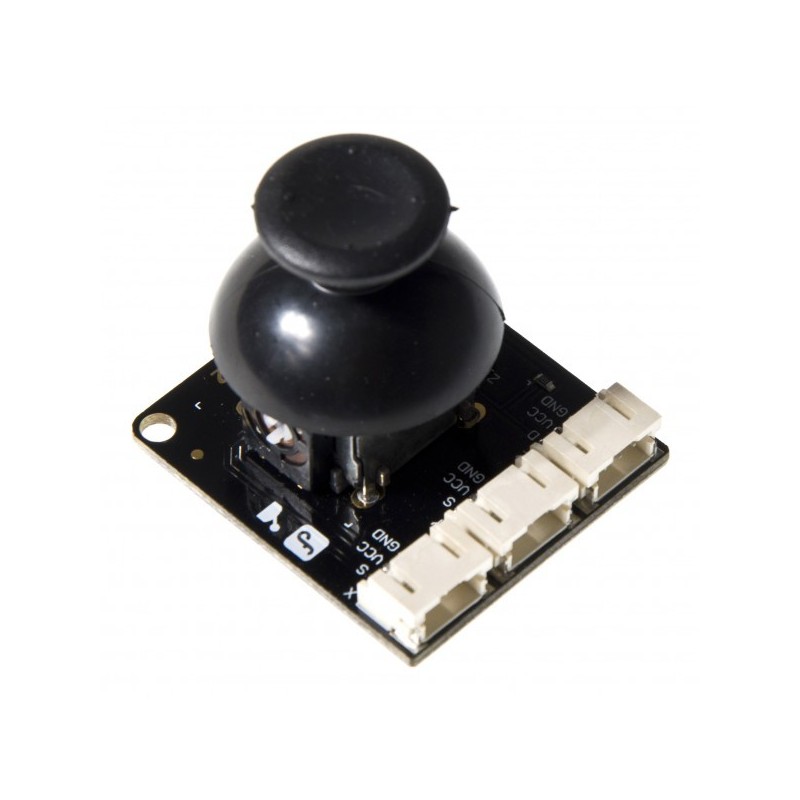

Modulo JoyStick V2

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Introduction

Lots of robot projects need joystick. This updated joystick module V2 provides an affordable solution.  Simply connect  to two analog inputs, the robot is at your commands with X,Y control. It also has a switch that is connected to a digital pin.  This joystick module can be easily connect to Arduino by our IO Expansion Shield with supplied cables.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pinmapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.

• Wide voltage range from 3.3V to 5V
• Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
• Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
• Icons to simplely illustrate sensor function
• High quality connector
• Immersion gold surface

Specification

• Supply Voltage: 3.3V to 5V
• Interface: Analog x2,Digital x1
• Size:35x39mm

Documents

• WikiDoc
• Schematic

• Joystick Module V2      (1 unit)
