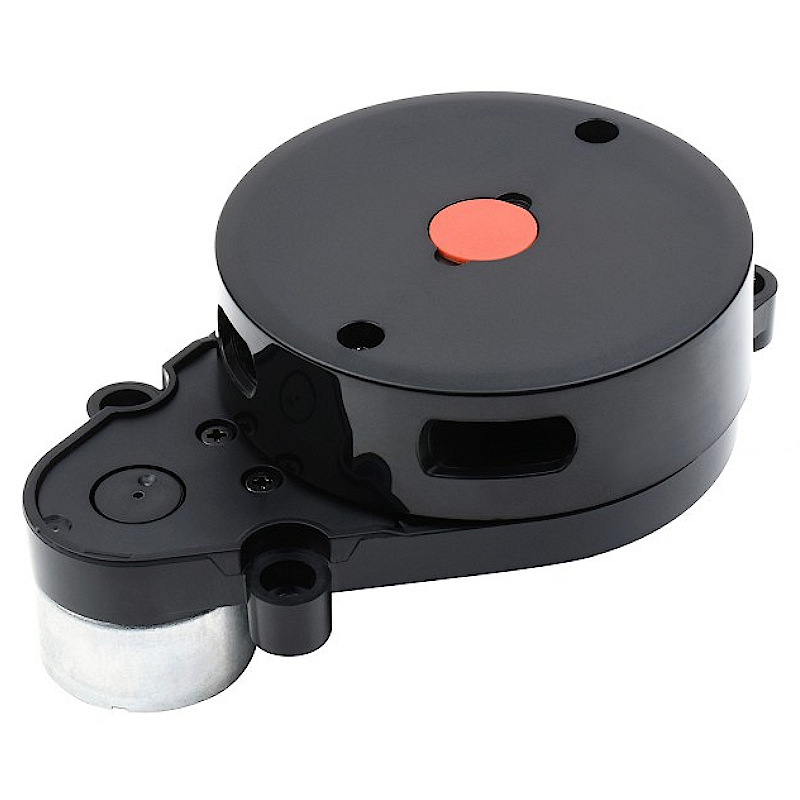

Lidar LD14P (ToF) Sensor de Distancia Laser c/ Adaptador USB (0.1-8m, 360º, UART) - D200 LiDAR Kit

Referência : SEN03085

58,90 €

preço com IVA incluído

O Kit D200 LiDAR é um sensor de distância laser de 360° que utiliza tecnologia de triangulação para medições de distância precisas. Com um alcance de medição de 0,1 a 8 metros, realiza até 4.000 medições por segundo. A sua frequência de scan é ajustável entre 2 e 8 Hz, sendo 6 Hz o padrão, e ainda suporta comunicação UART. Além disso, possui resistência à luz ambiente até 80.000 Lux, permitindo o bom funcionamento em diversos ambientes internos e externos.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade

Últimos artigos em stock

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specifications

Ranging Distance(m)	0.1≤D≤0.5	0.5	1≤D≤2	2≤D≤4	4≤D≤6	6≤D≤8
White target Ranging Accuracy	±5mm	±10mm	±1.0%	±1.0%	±1.0%	±1.5%
Black target Ranging Accuracy	±7mm	±12mm	±1.2%	±1.2%	±1.5%	NA
Note: 1. The reflectivity of the white target is 80%, the reflectivity of the black target is 4.0% (tested by C84-III Reflectometer). 2. Raning accuracy: each point is within ±1° horizontal from the center of the acquisition baffle, calculate the average value of 30 consecutive data

Ranging Range	0.1 ~ 8.0m
Scanning Frequency	6Hz by default, 2 ~ 8 Hz externally controllable
Scanning Angle	360°
Ranging Frequency	4000 Hz
Ambient Light Tolerance *	80000Lux (tested under sunlight condition)
Wavelength	775 ~ 800nm (Typ 793)
Communication Interface	UART @ 230400
Power Supply	DC 5V±10%
Power Consumption	≤ 1.5 W
Operating Current	≤ 300 mA
Weight	101 g
Operating Temperature	-10°C ~ 50°C
Lifetime	2200 hours
Dimensions (L × W × H)	96.3 × 59.8 × 38.80mm
* Note: This data was tested by Waveshare Lab, for reference only, the actual data may be affected by environmental factors

Supports Start-stop Control via Software

Supports controlling Lidar start/stop by sending corresponding commands via serial port, effectively prolonging its lifetime

8m Radius Ranging

LD14P can sense the environment information in a longer range, which ensures the robot’s ability to cruise and build maps in a larger area and obtain more environmental profile information

Support glass wall detection

Supports glass wall detection at specific angles, reducing collisions during robot operation, extending the lifetime of the whole machine, and increasing safety

360° Omnidirectional Laser Scanning

LD14P rotates clockwise in the ranging core to achieve 360° scanning of the surrounding environment, thus obtaining the information of the plane point cloud of the space where it is located.

Strong Ambient Light Tolerance

Better filter processing technology, supports using in the 80000 Lux strong light environment, suitable for a variety of indoor and outdoor environments

4000Hz Ranging Frequency

4000Hz ranging frequency which can easily scan the outline of the scene within the ranging range and realize fast and accurate mapping

Triangulation Technology

The LD14P in the D200 Developer Kit is based on triangulation radar technology to achieve independent mapping and obstacle detection for the robot

Thin, compact and stylish appearance

With a thin and light structure design, while ensuring performance, it features smaller size, lower power consumption, and easier installation, can be adapted to more robot types

Laser Safety FDA Class 1

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating

High-performance Light-sensitive CMOS

LD14P adopts high-performance light-sensitive CMOS, higher efficiency, more stable performance, more dense collecting points, and more accurate mapping
