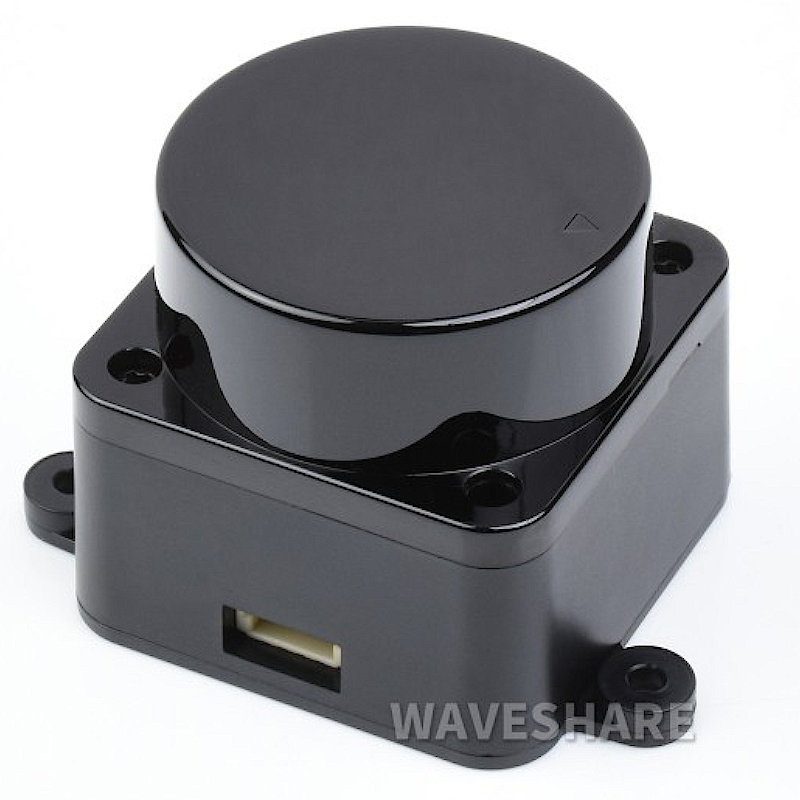

Lidar STL-19P (ToF) Sensor de Distancia Laser c/ Adaptador USB (0.03-12m, 360º, UART) - D500 LiDAR Kit

Referência : SEN03086

98,90 €

preço com IVA incluído

O D500 LiDAR Kit é um sensor de medição a laser baseado na tecnologia DTOF, capaz de realizar scan de 360° com um alcance de até 12 metros. Com uma frequência de recolha de dados de 5000Hz e comunicação via UART, é ideal para aplicações como navegação autónoma, reconhecimento de gestos e mapeamento 2D. Este dispositivo possui resistência a interferências de luz ambiente até 60.000Lux, é compacto e cumpre os padrões de segurança laser da Classe 1 da FDA.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade

Últimos artigos em stock

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specifications

Ranging Distance	0.03 ~ 12.00m
Ranging Average Accuracy	±10 mm (within 0.03 ~ 0.5m) ±20mm (within 0.5 ~ 2m) ±30mm (within 2 ~ 12m)
Scanning Frequency	6 ~ 13Hz (Typ 10Hz)
Scanning Angle	360°
Ranging Frequency	5000Hz
Wavelength	895 ~ 915 nm (Typ 905)
Communication Interface	UART @230400
Ambient Light Tolerance	60KLux
Power Supply	5V
Power Consumption	1.45W
Operating Current	290mA
Weight	45g
Operating Temperature	-10 ~ 45°C
Lifetime	10000+ hours
Dimensions (L × W × H)	54.00 × 46.29 × 35.00mm

DTOF (Direct Time of Fight) Ranging Technology

Adopting DTOF (Direct Time of Fight) ranging technology, measuring distance according to the time-of-flight of the laser pulse, within the effective detection distance of 12m, the radar ranging accuracy will not change with the distance, and can reach the measurement accuracy of ±30 mm. With efficient algorithm logic to achieve 360 degrees detection of robot, autonomous mapping, and obstacle detection...

Long Lasting Lifetime

Brushless motor, quiet without Friction, the lifetime can reach 10000+ hours

360° Omni-Directional Laser Scanning

Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles

12m Ranging Radius

Ensuring the large-area cruising and mapping capabilities of robots

Anti-strong light interference

Rigorous optical design and powerful chip can effectively avoid strong light interference, and can resist the strong light environment of 60000Lux, which can achieve indoors and outdoors high-frequency and high-precision distance measurement and accurate mapping

Exquisite, Compact, Stylish Appearance

It adopts a compact structure design, stylish appearance, smaller size, lower power consumption, and can be embedded inside the robot to reduce its size and improve its passability

Laser Safety FDA Class 1

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating
