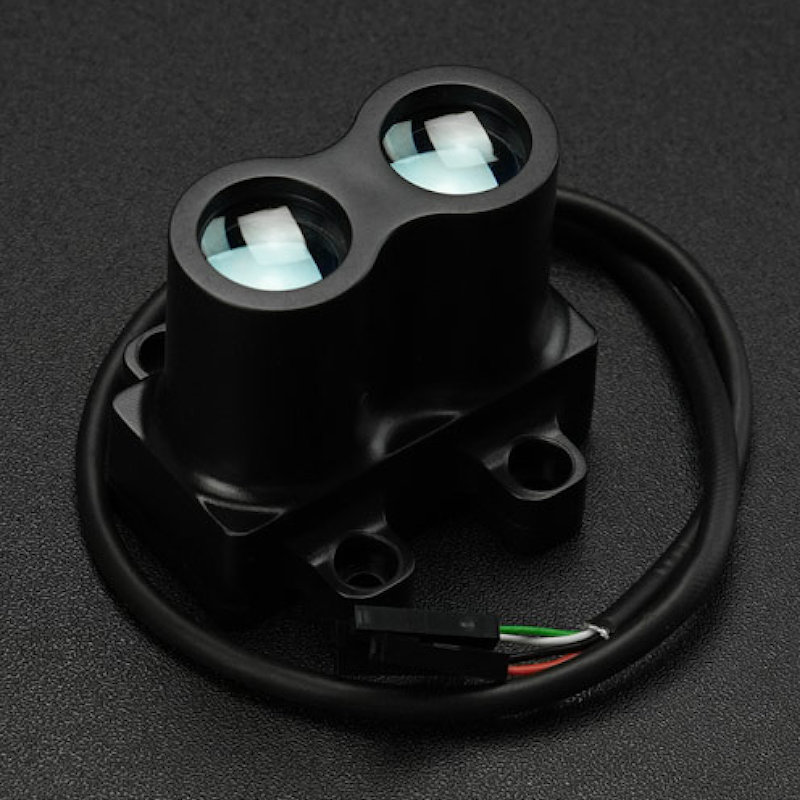

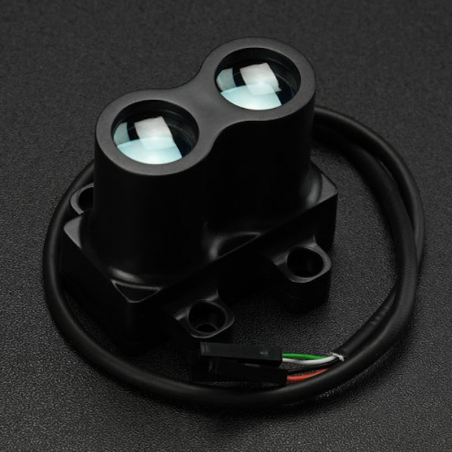

LIDAR LPB40B (ToF) Sensor de Distancia Laser (0.05-40m, UART, IP65) - DFRobot SEN0586

:SEN03083
109,50 €
preço com IVA incluído

Este é um sensor baseado na tecnologia TDoF, fazendo assim com que este sensor funcione de forma estável mesmo sob forte iluminação exterior. Este sensor é capaz de suportar até o 100klux de luz ambiente e detetar distâncias até 40m, A sua taxa de atualização é ajustável (1~2000Hz) tornando-o assim adequado para vários cenários de alta velocidade. Com a sua interface UART, podes ligar este sensor a vários microcontroladores.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

The LPB40B Single-Point Ranging LiDAR based on the DToF principle. The DToF technology enables the laser radar to work stably under strong outdoor lighting, further improving the stability and accuracy of distance measurement. It is capable of withstanding up to 100klux of ambient light, with a range of up to 40m indoors and outdoors. The overall accuracy is within ±5cm, and the measurement frequency is adjustable from 1 to 2000Hz, making it suitable for various high-speed scenarios. The sensor has UART output, allowing users to use it in conjunction with an Arduino IO expansion board. It can be applied in applications such as altitude hold for drones, collision avoidance for vehicles, intelligent transportation, and IoT security.

The radar has an IP65 protection rating, and the lens is made of coated crown glass, ensuring stability and reliability in industrial environments. It also includes protection measures against reverse connection, overvoltage, and current limitation.



Single-point laser Radar adopts DTOF Technology

DToF Technology principle



Waterproof IP65 Protection Level



Waterproof IP65 Protection Level

IP65 Protection Level





Dimensional drawing of LPB40B ToF Single-Point Ranging LiDAR

Dimensional drawing of LPB40B ToF Single-Point Ranging LiDAR



Features

  1. The measurement range for both indoor and outdoor is up to 40m.

  2. The accuracy is high, with a full range of ±5cm.

  3. The measurement frequency is high, adjustable from 1 to 2000Hz.

  4. The internal components include protection measures against reverse connection, overvoltage, and current limitation.

  5. Certified with CE, FCC, ROHS, and FDA.



Applications

  1. Gate detection

  2. Drones follow up

  3. Outdoor parking space inspection

  4. High-speed rail inbound inspection

  5. Level granary testing

  6. Vehicle flow detection




Specification

  1. Measurement Range:

    1. 0.05~40m (90% reflectivity indoors and outdoors)

    2. 0.05~12m (10% reflectivity indoors and outdoors)

  2. Measurement Accuracy: ±5cm

  3. Operating Voltage: 5V

  4. Power Consumption: ＜130mA@5V

  5. Communication Interface: UART

  6. Wavelength: 905nm

  7. Resolution: 1.5cm

  8. Measurement Frequency: Adjustable from 1 to 2000Hz (default is 100Hz)

  9. Protection Level: IP65

  10. Ambient Light Immunity: 100klux

  11. Laser Emission Angle: 0.17°

  12. Reception Field of View: 2.2°

  13. Operating Temperature: -40°C~85°C

  14. Weight: 43g



Documents



Shipping List

  1. LPB40B DToF Single-Point Ranging LiDAR Sensor (0.05-40m) x1

SEN03083
