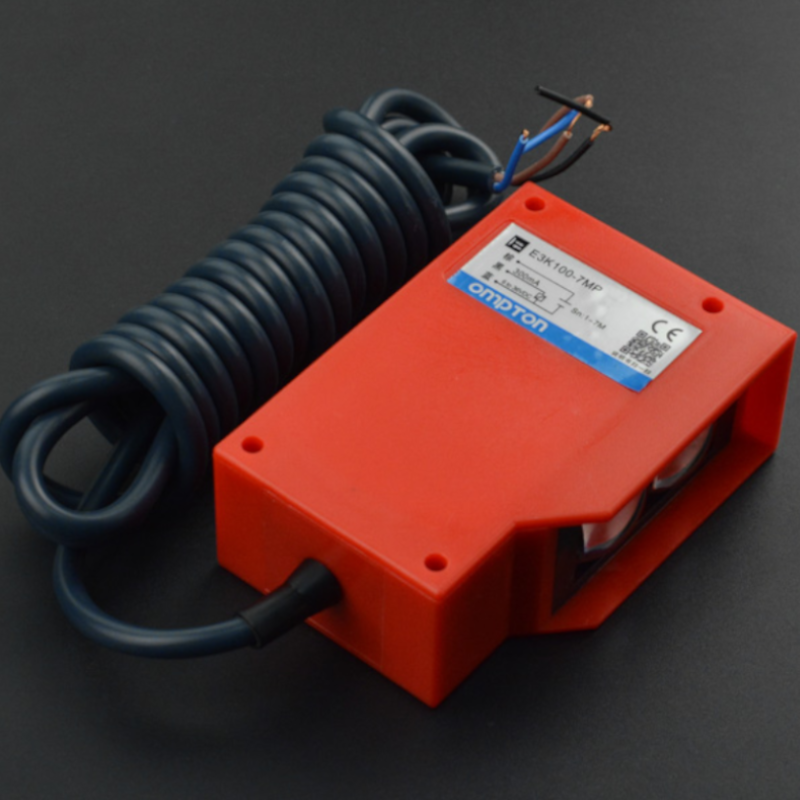

Sensor Infravermelhos ON/OFF Ajustável (0-7m) à Prova de Água - DFRobot SEN0455

: SEN03064
14,90 €
preço com IVA incluído

Sensor Infravermelhos ON/OFF Ajustável pode detectar qualquer objeto opaco dentro de 0-7 m (a distância de detecção real pode ser maior que os 7 m no nosso teste)

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

This diffuse reflection infrared photoelectric switch can detect any opaque object within 0-7m( The real detection distance can be greater than 7m in our test). With a 6-36V power supply, the sensor has a signal indicator for real-time status feedback, and a button for adjusting detection distance(Clockwise to increase, counterclockwise to reduce). It is also waterproof and features polarity protection, and short circuit protection, which can be used in automatic car washing device, security detection, automatic access control lever lifting, intelligent induction furniture.

Diffuse Reflection Photoelectric Switch

Specification:

  1. Power Supply Voltage: 6-36V

  2. Detection Distance: 0-700cm

  3. Response Time: 2.5ms (1second=1000ms)

  4. Detection Object: any opaque object

  5. Output Form: switching value

  6. Output Current: Max300mA

  7. Waterproof Rating: IP67

  8. Protection Level: IP54

  9. Shell Material: ABS plastic

  10. Protection Function: polarity protection, short circuit protection

  11. Power Cord Length: 2m

  12. Standard Detection Object: 5*5 white matt paper

  13. Size: 69*100*37mm/2.72*3.94*1.46



Shipping List

  1. Diffuse Reflection Photoelectric Switch (0-7m) x1

  2. Screwdriver x1
