Pack de 4 sensores de obstáculos com placa de ajuste única

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: -10°C to +50°C
Mounting aperture: M3 screw
Detection range: 1mm to 60cm adjustable, the closer the performance more stable, white reflects the farthest distance.
Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

Connection details:

1. DO1-1 road TTL level output

2. DO2-2 road TTL level output

3. DO3-3 road TTL level output

4. DO4-4 road TTL level output

5. GND – negative

6. VCC – positive

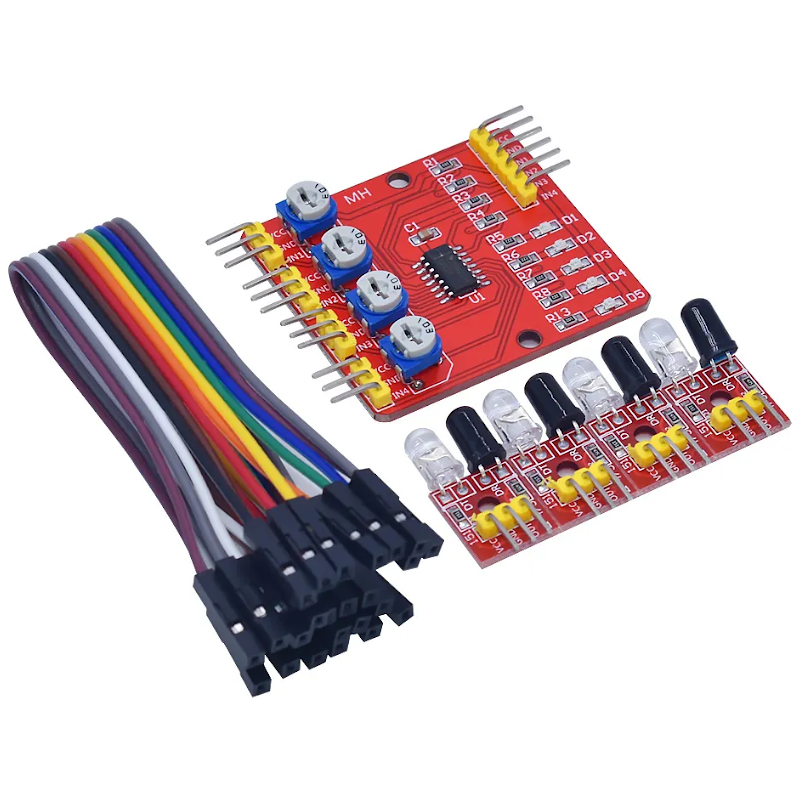

Package Includes:

1. 4 x IR Line Tracker Modules

2. 1 x Connection Board

3. 1 x Female to Female Dupont Line
