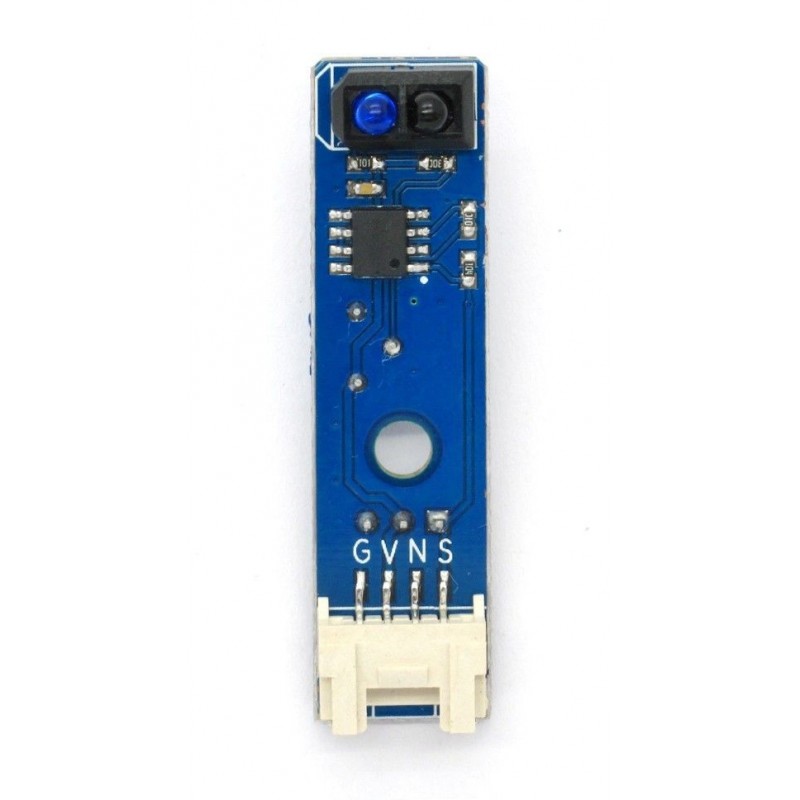

Track Sensor TCRT5000

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

1. Plug and play, easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market.

2. With use of M4 standard fixed holes, compatible with M4-standard kits such as Lego and Makeblock.

3. With adjustable potentiometer to set detecting height threshold.

4. With hysteresis comparison circuit for more stable digital output voltage

5. With LED indicator for real-time detection of current digital output status.

Specifications

Note 1：S for analog/digital output port ( defined according to the switch), V and G for voltage at the common collector and ground respectively

Note 2： The specific measurable height is depended on the color and reflection of the material, the more the color contrast, the better to detect.

Electrical Characteristics

Hardware

Switch and indicator

1. Regulating of threshold voltage:

The threshold voltage is a voltage for comparison. When the sensor encounters obstacles, and the induced voltage is above the threshold, it will digitally output a high level (3.3V or 5V); when there are no obstacles, and the induced voltage is below the threshold, it will digitally output a low level (0V). In this way, the digital pin can be used directly to see if the sensor encounters obstacles or not. The threshold voltage can be regulated by simply twisting the potentiometer which is shown in the following diagram, and it increases by rotating to left side and decreases by rotating to right side

2. Status lamp

Within certain height, LED lamp will be OFF when obstacles or non-black objects are detected and it will be ON when no obstacles but black objects (compared to the non-black objects under the same height) are detected.

Demo

Connect S port of track sensor to D2 port of Arduino board, and we will use the following program to read the digital value of current status. When objects are detected, buzzer will give an alarm.

 const int DSIGNAL = 2;
 const int buzzer= 3;

 void setup()
 {
 pinMode(DSIGNAL, INPUT);
 }
 void loop()
 {
 int DsignalState = digitalRead(DSIGNAL);
 if(DsignalState)
 {
 digitalWrite(buzzer,LOW);
 }
 else
 {
 digitalWrite(buzzer,HIGH);
 }
 }

Download

Datasheet for Track Sensor

Schematic for Track Sensor

Demo code for Track Sensor
