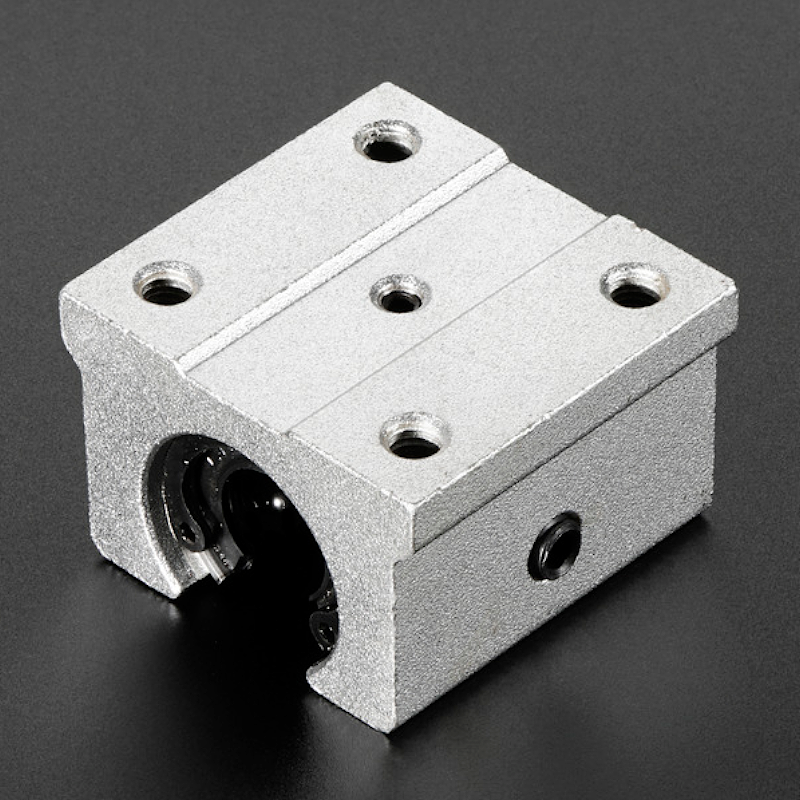

Plataforma de esferas p/ guia linear de 12mm - SBR12UU - 39x36mm

: CME08009
9,85 €
preço com IVA incluído

Faz a tua CNC mover-se com uma guia linear e esta plataforma de esferas.



Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Make your robot or CNC move on our Aluminum Slide Rail with this sliding linear ball-bearing platform AKA pillow block. The slider is 39mm x 36mm and has four holes tapped for M5 machine screws so you can attach pretty much anything you want. This slider has a plastic interior with small metal ball bearings to make it slide easily and smoothly.

The platform won't come off the railing but it does rotate a bit around so for best stability, use two support rails. Often times, CNC projects will have two of these on opposite sides of the machine body to support a larger platform. You can also have some other support mechanism of your own devising.

VIDEO



Technical Details

  1. Load-bearing Mechanism: Hydrostatic Bearing

  2. Bearing Shell Material: Plastic

Dimensions:

  1. 39mm x 36mm x 27mm / 1.5" x 1.4" x 1"

  2. Width of Top: 40mm / 1.6"

  3. Inside Diameter: 12mm / 0.5"

  4. Outer Diameter: 30mm / 1.2"

  5. Mounting Hole Diameter: 4mm / 0.16"

  6. Mounting Hole Distance: 28mm x 26mm / 1.10" x 1.02"

  7. Weight: 87.4g

CME08009
