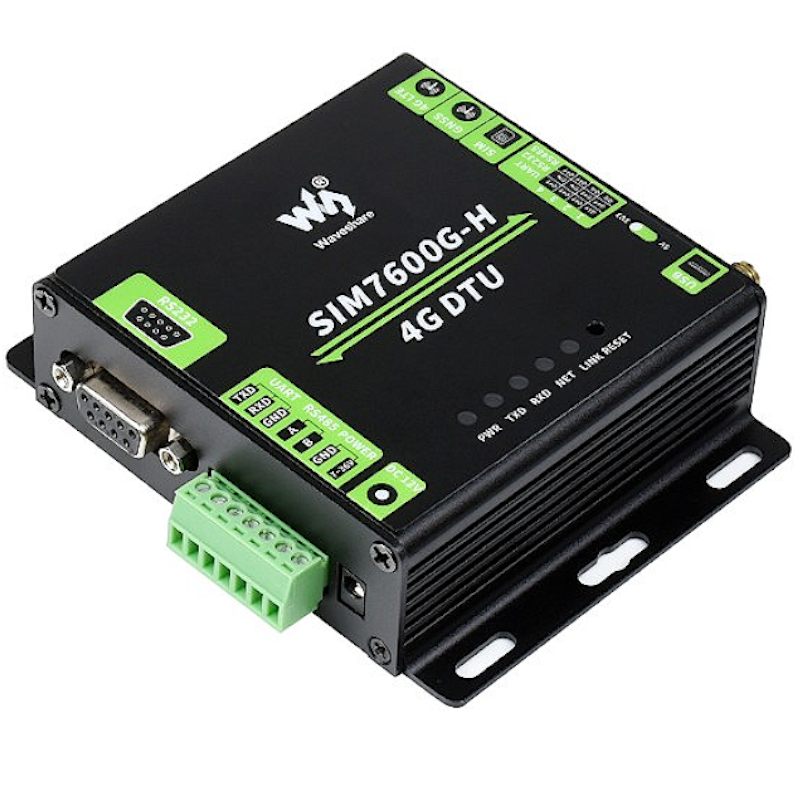

Conversor 4G DTU GSM/GPS SIM7600G-H para USB UART/RS232/RS485 VERSÃO INDUSTRIAL

Referência : COM06022

98,50 €

preço com IVA incluído

O módulo SIM7600G-H 4G DTU da Waveshare com interfaces múltiplas para comunicações suporta redes de 4G,3G e 2G. A tensão de funcionamento deste produto é de 7V até 36V e é compátivel com Raspberry Pi e Jetson Nano, sendo também operacional com Windows e Linux.

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

Quantidade

Últimos artigos em stock

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Supports communication between USB / serial port (UART/RS232/RS485) and 4G network, supports GNSS positioning, compatible with OS like Windows/Linux.
An ideal choice for fields like Raspberry Pi project, industrial control, industrial data collection, and other IoT applications that require 4G network connection.

Features At A Glance

4G DTU development kit designed for industrial applications, allows direct integration or secondary development
Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network
Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning
USB to 4G communication, UART/RS232/RS485 to 4G communication
7 ~ 36 V wide range power supply, ideal for industrial applications
Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception
Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance
Baudrate: 300bps ~ 4Mbps (115200bps by default)
AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)
Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant

Specifications

FREQUENCY BAND
4G	LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD: B34, B38, B39, B40, B41
3G	UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
2G	GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS	GPS, Beidou, GLONASS, GALILEO, QZSS
Applicable regions	Global support
DATA RATE
4G (LTE Cat-4)	150Mbps(DL) / 50Mbps(UL)
3G (HSPA+)	42Mbps(DL) / 5.76Mbps(UL)
2G (EDGE)	236.8Kbps(DL) / 236.8Kbps(UL)
2G (GPRS)	85.6Kbps(DL) / 85.6Kbps(UL)
SOFTWARE FEATURES
Communication protocol	TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS (controlled via AT commands, with module Open Linux SDK for secondary development)
OS support	Windows/Linux etc.
HARDWARE DESCRIPTION
Serial port	RS232: connector: DB9 female protection: TVS protection, anti-surge, ESD protection
	RS485: connector: screw terminals (A, B) protection: 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R balancing resistor solder pads)
	TTL(UART): operating voltage: 3.3V or 5V connector: screw terminals (TXD, RXD, GND)
Serial port baudrate	supports 300bps ~ 921600bps, 115200bps by default
USB port	operating voltage: 5V connector: Micro USB protection: ESD protection diode usage: parameter configuration, dial-up, firmware upgrade
Power input	connector: 7~36V screw terminals or DC 12V jack protection: Schottky diode protection, reverse-proof
Hardware protection	embedded MCU, hardware watchdog to prevent system crash, industrial grade aluminum alloy case
Operating voltage	7 ~ 36V DC
Operating current	idle: 10~30mA @12V
Operating current	transmit: 80~450mA @12V (depending on the network condition)
Indicator	PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)
Button	reset button
SIM card	standard SIM card (1.8V / 3V)
Antenna connector	MAIN LTE, AUX LTE, GNSS
Operating temperature	-40℃ ~ 80℃
