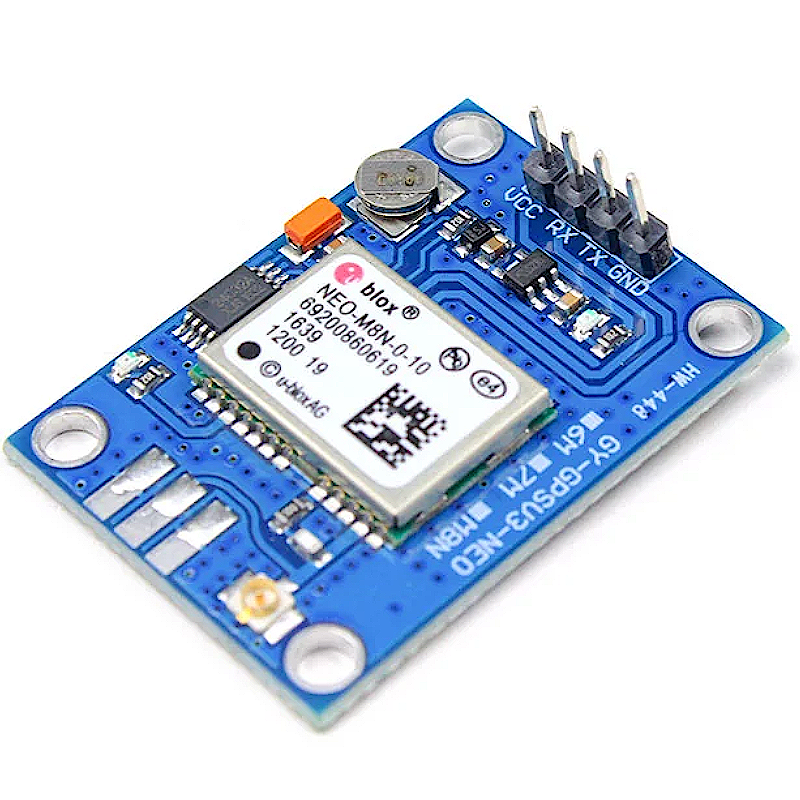

MÓDULO GPS NEO-8M - UART C/ ANTENA CERÂMICA

:SEN09008
18,90 €
preço com IVA incluído

A série de módulos GNSS simultâneos do módulo GPS NEO-M8M com antena cerâmica ativa é construída no mecanismo GNSS M8 de alto desempenho no formato NEO comprovado pela indústria.

Compatível com dispositivos compatíveis com UART, incluindo Arduino, Raspberry Pi, PIC, MSP430 e MSP432.

Ligue o módulo e este irá adquirir automaticamente sinais de satélite e uma posição fixa. Assim que tiver uma posição fixa, o módulo piscará o LED integrado. Este LED continuará a piscar enquanto o módulo tiver uma posição fixa.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.



Ceramic Active Antenna:

  • Connecting cable length: 20mm
  • Size: 25mm*25mm*8.5mm (L*W*H)

 Features:

  • With data backup battery
  • Compatible with various flight controller module
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal
  • The ceramic antenna provides a very strong signal

Applications:

  • Industrial applications
  • Automotive applications
  • Animal tracking devices

Features :

  • The ceramic antenna provides a very strong signal
  • With LED indicator lamp
  • The default baud rate: 9600.
  • With data backup battery.
  • LED signal indicator.
  • Compatible with various flight controller module.
  • EEPROM save the configuration parameter data when power-down.
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal.
  • Extra onboard SAW bandpass filter
  • Memory Flash
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time

Specifications:

Model

Ublox NEO-M8N

Receiver Type

72-channel Ublox M8 engine.

Input Supply Voltage (VDC)

3 ~ 5

Main Chip

Ublox NEO-M8N

Sensitivity (dBm)

156
Cold Start (without aiding): -147 dBm

Position Accuracy (Meter)

2
2.5

Acceleration (g)

<4

Navigation Update Rate

up to 18 HZ.

Operating Temperature Range (°C)

-45 to 105

Tracking Sensitivity (dBm)

-161 dBm

Co-Ordinate System

WGS-84

Capture Time

0.1s Average

Avg Cold Start Time (s)

30

Warm Start Time (s)

1

Boot Time

1S

Maximum Altitude (m)

18000

Dimensions (mm) LxWxH

Antenna: 25 x 25 x 9
Module: 26 x 36 x 4

Weight (gm)

17


Package Includes :

  • 1 x Ublox NEO M8N GPS Module.
  • 1 x Ceramic Active Antenna.
