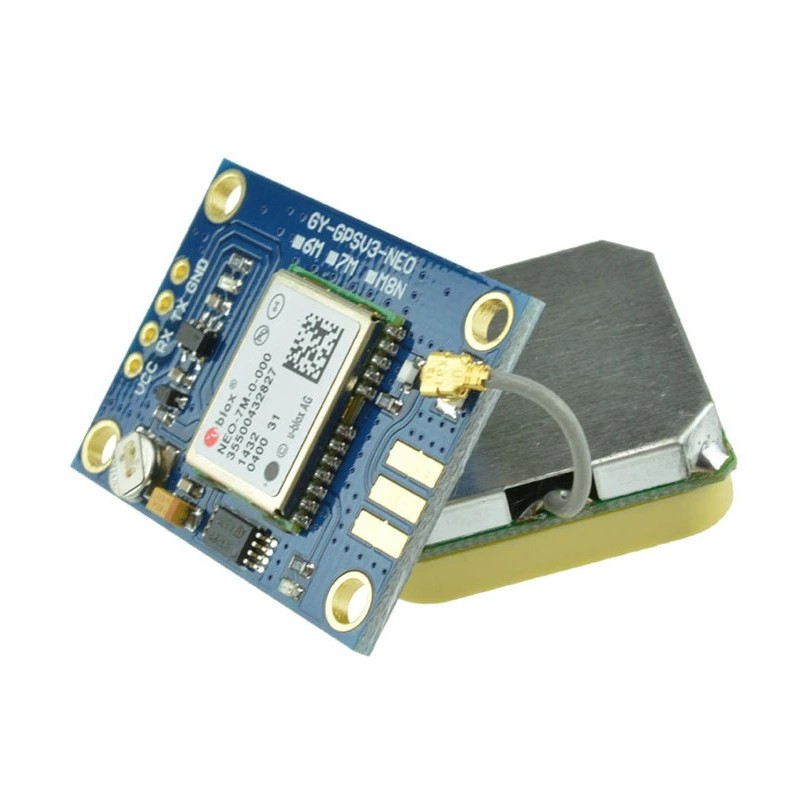

Módulo GPS NEO-7M - UART c/ antena cerâmica

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The U-blox NEO-7M GPS Module is ideal for all sorts of development boards, Arduino projects and more. It can operate on voltages between 3 and 6V DC, and has a simple serial output which blasts out the NMEA GPS data at 9600 baud.

Arduino users - this works perfectly with the TinyGPS++ library. With the 7M you can also extract navigation data with this Arduino library.

Specifications

• GPS modules NEO-7M, 3V-5V power supply
• Using imported u-blox NEO-7M-0-000 GPS module
• Module with ceramic destined antenna, signal super
• EEPROM power down to save the configuration parameter data
• With data backup battery
• There are LED lights
• High quality Immersion Gold PCB
• Antenna Size: 12x12mm
• Module Size: 23x30mm
• Installation Diameter: 3mm
• Supply Voltage: 3V-5V
• The default baud rate: 9600

Pinouts:

• GND - GND
• Vcc - connect to 5V or 3.3V
• TX - data from GPS module - connect to your board's RX pin
• RX - data to the GPS module - connect to your board's TX pin
• PPS - time pulse output

More information:

• ublox product home page for data sheets and more details
• Please download the data sheet (.pdf)
• Windows test software
• Arduino TinyGPS++ library
• Arduino Navigation data library
