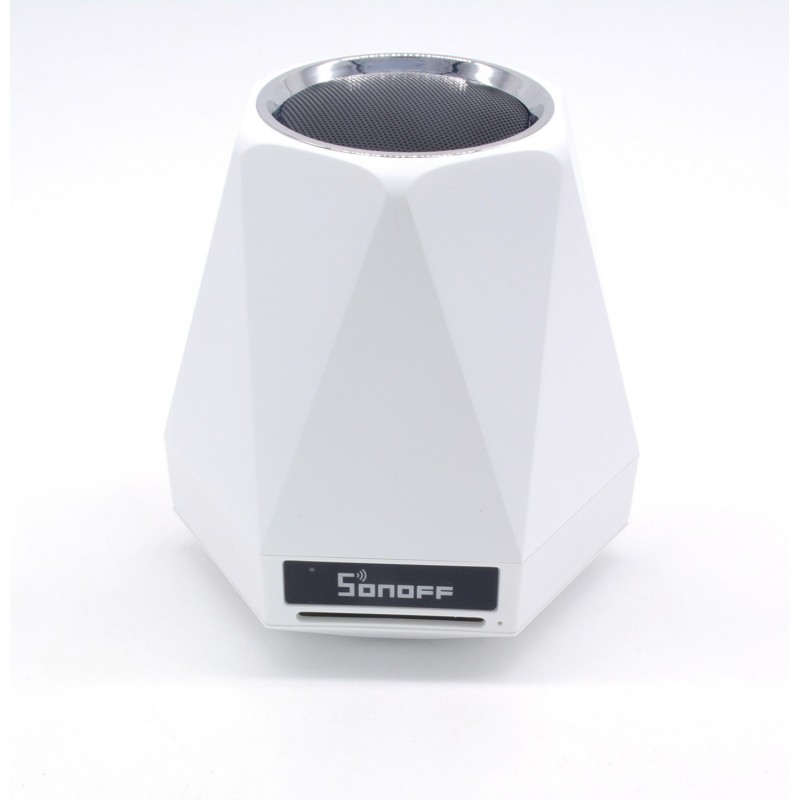

Sonoff SC - Multi sensor Ambiental

Before you place the order, please note:

- This is more a TOY than a final product. Please take it as a product for hobbyist.

- Make sure you know the accuracy of the sensors, especially for the DHT11, microphone, there's some error.

- The firmware is not well polished. there may be some bug.

Sonoff is a universal swich for your smart home system to remote or automate turn on/off other electrical devices. To work with the Sonoff SC, Sonoff become more smart.

Overview

Sonoff SC is an ESP8266 and ATMega328(Arduino) based indoor WiFi environmental monitor station. It detects current temperature, humidity, light intensity, air quality (particulate), and even sound levels (noise pollution), and directly sends realtime data to iOS/Android APP EWeLink. Its power supply is micro USB 5V.

The most significant function of SC is that it supports to set all kinds of smart scene to trigger on/off other device. With the environment data, we can use smart scene to make traditional home appliances intelligent. The smart scene allows to set one or more Sonoff SC conditions (temperature, humidity, light intensity, air quality and sound levels), when the conditions meet the preset level, it can trigger to turn on or off other devices, say Sonoff.

That means we can dig more possibilities by using Sonoff SC. For example,by collecting air quality data, we can set up scene to turn on/off ventilating fan to guarantee fresh air indoor; Lighting can be automatically adjusted to the most suitable brightness according to the changing house light.

If the collected data does not exceed the update threshold, the data will be updated every two minutes. If there is a significant change, it will updated to the AWS IOT server.

The Sonoff SC is hacker-friendly, we use the ATMega328 controller with Arduino code to read the sensor data, and use the ESP8266 for wifi communication. You can get the Sonoff SC schematic , Arduino code in our wiki.

Note: this is NOT a speaker although it looks like one, it does NOT support bluetooth or SD card.

Features

Display realtime environment around:

• Realtime temperature(0-100℃) and humidity(%)
• Light level: dusky, normal, bright
• Air quality: good, moderate, unhealthy
• Sound level: quiet, normal, noisy
• Support smart scene to trigger ON/OFF of another smart home device

Package includes:

• Sonoff SC*1
• USB cable*1
