Descrição do Produto:

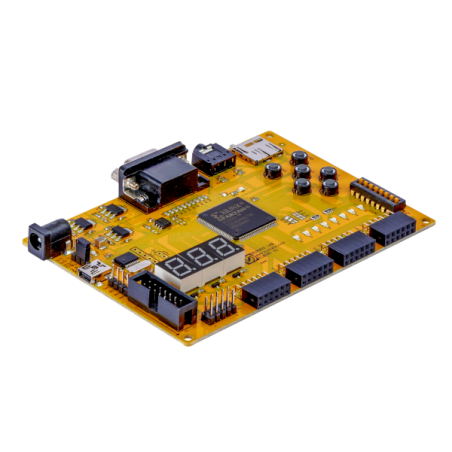

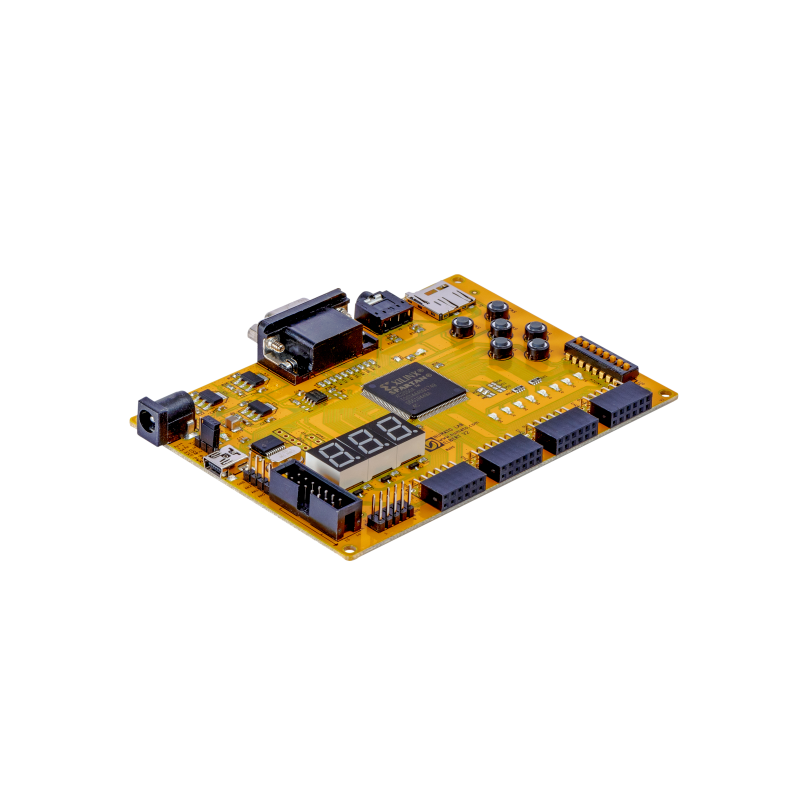

ELBERT V2 é uma placa FPGA simples, mas versátil o que reduz a curva de Aprendizagem / Desenvolvimento com Xilinx Spartan 3A. É uma excelente escolha para iniciantes e alunos que pretendem experimentar e estudar sistemas com FPGAs. Esta placa de desenvolvimento vem com o Xilinx XC3S50A FPGA de 144 pinos, dos quais 108 são IOs e 39 deles estão disponíveis para o utilizador (os restantes IOs estão dedicados ao sistema e periféricos). A interface USB2.0 disponibiliza de forma fácil e rápida o download de configurações para a flash SPI onboard. Não necessita de um programador ou cabo downloader especial para poder descarregar programas para a Elbert. A ELBERT V2 apresenta relógio muito estável e disponibiliza LEDs, interruptores e outros periféricos para poder começar com o programa "Olá Mundo" numa questão de poucos minutos.
Recursos da placa:
- FPGA: XC3S50A Spartan num chip com o encapsulamento TQG144
- Memória Flash: 16Mb SPI (M25P16)
- Interface USB 2.0 para a programação da flash onboard
- Configuração do FPGA via JTAG e USB
- 8 LEDs, seis botões de pressão e interruptor DIP 8 posições para definições do utilizador
- Saída VGA
- Saída de áudio estéreo
- Adaptador para cartões Micro SD
- Três Displays de 7 Segmentos
- 39 IOs para fins definidos pelo usuário
- reguladores de tensão a bordo para a operação trilho de alimentação única
- ROHS Compliant
Documentos:
Acessórios:
1
USB type A to Mini B 5-pin cable. Can be used with many USB products available from Numato Lab.5 Foot (1.5 Meters) length.
2
Numato Lab’s VGA display module provides an easy and cost effective way to add VGA display to your custom project using a 12pin connector. It is designed to be used with Numato Lab’s FPGA boards featuring a 2x6 pin Expansion connector.
3
Numato Lab’s Push Button Switch Expansion Module has 8 momentary push buttons arranged in an easy to use pattern. Pushing a switch will cause the corresponding pin on the expansion connector to be short circuited to ground. Along with FPGA’s internal IO pull-up, this board can cause voltage change on FPGA pin when switch is pressed. And this change can be read by the FPGA for further processing. This board is designed to be used with our FPGA boards featuring a 2x6 pin Expansion connector.
4
This is a simple module features an on board Mini breadboard with 8 Ios available on headers nearby. This board uses a 2x6 expansion connector and is designed to be compatible with Numato Lab’s FPGA boards featuring a 2x6 pin Expansion connectors. It can also be used with any of the FPGA boards by using manual wiring if 2x6 expansion header is not available.
5
Micro SD Expansion Module provides an easy and convenient way to interface Micro SD card to Numato Lab’s FPGA/Microcontroller boards. It can be connected to any FPGA/Microcontroller board featuring 2x6 pin Expansion connector. This module can be manually wired to FPGA/Microcontroller boards that does not have 2x6 expansion header.
6
This is a simple expansion module with 8 LEDs for general purpose status indication and other human machine interface purposes. It can be connected to Numato Lab’s FPGA/Microcontroller boards featuring a 2x6 pin Expansion connector. This expansion module can be connected to other boards by using manual wiring. LEDs are connected in common cathode topology.
7
This expansion module features a 16x2 Alphanumeric LCD Module which can be added to your custom project using a 2x6 pin connector. It is designed to be used with Numato Lab’s FPGA/Microcontroller boards featuring 2x6 pin Expansion connectors. This module can be used with other boards as well by using manual wiring.
8
This module features CS4344, a 24-Bit, 192 kHz Stereo D/A Converter which enables producing high quality stereo audio from a digital source. It supports all major audio data interface formats. This module is designed to be used with Numato Lab’s FPGA/Microcontroller boards featuring a 2x6 pin Expansion connector. It can also be used with other boards and connector types by using manual wiring.
9
Seven segment LED display expansion module feature four 7-segment LED displays. This expansion module is designed to be directly compatible with Numato Lab’s FPGA/Microcontroller development boards featuring a 2x6 pin Expansion connectors. This module can also be used with other boards by using manual wiring.
