Placa de Desenvolvimento Saturn - Spartan 6 FPGA com DDR SDRAM

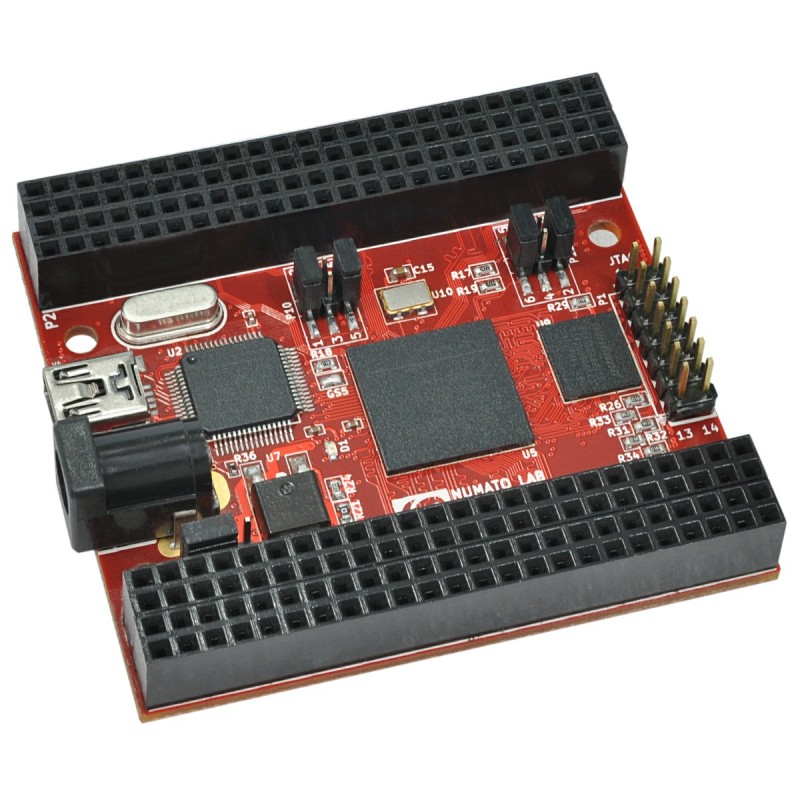

Saturn is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA. Saturn is specially designed for experimenting and learning system design with FPGAs. This development board features Xilinx XC6SLX series FPGA with FTDI’s FT2232H Dual-Channel USB device. The high speed USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No programmer or special downloader cable is needed to download the bit stream to the board.

Academic pricing is available for students and faculty.

Applications

• Product Prototype Development
• Development and testing of custom embedded processors
• Signal Processing
• Communication devices development
• Educational tool for Schools and Universities


Board features

• FPGA: Spartan-6 LX45 in CSG324 package (XC6SLX9, LX16 and LX25 available for custom order)
• DDR: 166MHz 512Mb LPDDR
• Flash memory: 128 Mb SPI flash memory
• 100MHz CMOS oscillator
• High Speed USB 2.0 interface for On-board flash programming
• FT2232H Channel A is dedicated for SPI Flash Programming. Channel B can be used for custom applications.
• On-board voltage regulators for single power rail operation
• FPGA configuration via JTAG and USB
• Maximum 158 IOs for user defined purposes
  • XC6SLX9 - 118 IOs
  • XC6SLX16 - 150 IOs
  • XC6SLX25 - 144 IOs
  • XC6SLX45 - 136 IOs
  • FT2232H - 8 IOs

• All tools, files and projects associated with building Linux for Saturn
•
• Bootable Linux Image For Saturn
•
• Configuration Tool (Windows)
•
• Configuring FT2232H USB Serial converter on Saturn Spartan 6 Module
•
• Creating Xilinx EDK test project for Saturn
•
• Expansion modules and Peripherals
•
• How to test LPDDR SDRAM on Saturn using ISE
•
• IO Breakout Module For Saturn
•
• Saturn, Microblaze and Linux - How to Run Linux on Saturn Spartan 6 FPGA Module
•
• Schematics and layout in KiCad
•
• User Constraints File
•
• User Manual
•
• xc3sprog for Windows And Linux (Third party, Open source)
•
• Numato Lab Board support files for EDK BSB wizard
•



1. Spartan6 and DDR SDRAM Memory - Your First DDR Interfacing Project
2. Configuring FT2232H USB Serial converter on Saturn Spartan 6 Module
3. Creating Xilinx EDK test project for Saturn - Your first Microblaze processor based embedded design
4. Saturn, Microblaze and Linux - How to Run Linux on Saturn Spartan 6 FPGA Module - Part I
5. Saturn, Microblaze and Linux - How to Run Linux on Saturn Spartan 6 FPGA Module - Part II
6. Saturn, Microblaze and Linux - How to Run Linux on Saturn Spartan 6 FPGA Module - Part III
7. Saturn, Microblaze and Linux - How to Run Linux on Saturn Spartan 6 FPGA Module - Part IV



Index  -  Name  -  Language/Technology  -  IDE  -  Hardware Modules Required  -  Download



1_16x2 LCD Display_Verilog_Xilinx ISE

Saturn IO Breakout Module , Alphanumeric LCD Display Expansion Module



2_LEDs_Verilog_Xilinx ISE

Saturn IO Breakout Module , LED Expansion Module - 8 LEDs



3_Push Button Switch_Verilog_Xilinx ISE

Saturn IO Breakout Module , Push Button Switch Expansion Module



4_Seven Segment LED Display_Verilog_Xilinx ISE

Saturn IO Breakout Module , Seven Segment LED Display Expansion Module



5_8Bit VGA_Verilog_Xilinx ISE

Saturn IO Breakout Module , VGA Display Expansion Module



6_LM4550 AC97 Audio_Verilog_Xilinx ISE

Saturn IO Breakout Module , LM4550 AC97 Expansion Module



7_CS4344 Stereo Audio_Verilog_Xilinx ISE

Saturn IO Breakout Module , CS4344 Audio Expansion Module



8_100M Ethernet_Verilog_Xilinx ISE

Saturn IO Breakout Module , 100BASE-T Ethernet Expansion Module



9_HDMI Transmitter_Verilog_Xilinx ISE

Saturn IO Breakout Module , HDMI Transmitter Expansion Module
