Mimas - Spartan 6 FPGA Placa de Desenvolvimento
  • Mimas - Spartan 6 FPGA Placa de Desenvolvimento
  • Mimas - Spartan 6 FPGA Placa de Desenvolvimento
  • Mimas - Spartan 6 FPGA Placa de Desenvolvimento
  • Mimas - Spartan 6 FPGA Placa de Desenvolvimento

Mimas - Spartan 6 FPGA Placa de Desenvolvimento

: PCO05019
63,50 €
preço com IVA incluído
Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Product Description

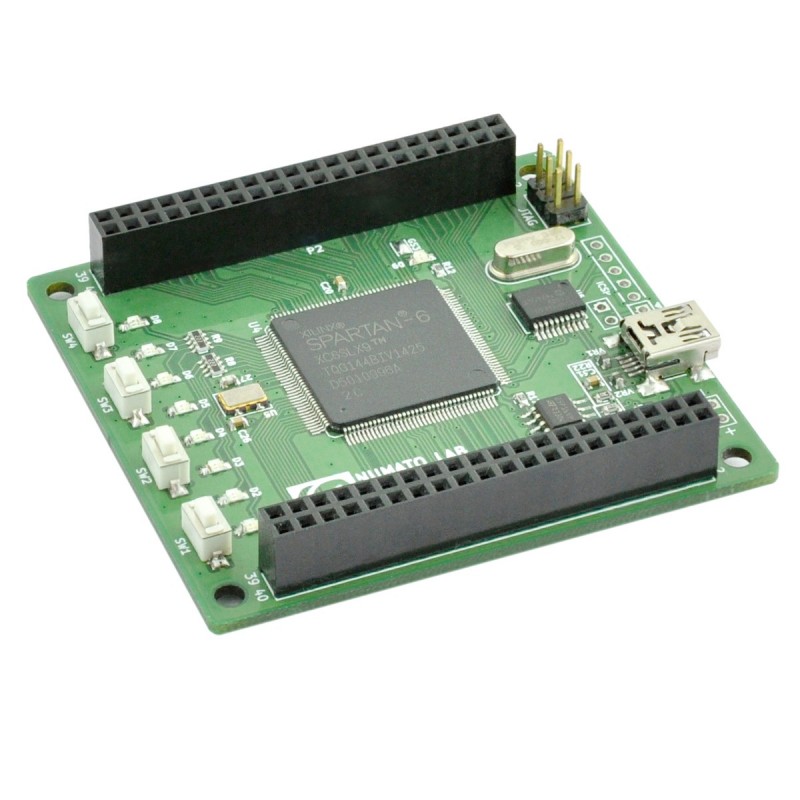

Mimas is an easy to use FPGA Development board featuring Xilinx Spartan-6 FPGA. Mimas is specially designed for experimenting and learning system design with FPGAs. This development board features Xilinx XC6SLX9 TQG144 FPGA with maximum 70 user IOs. The USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. You don’t need a programmer or special downloader cable to download the bit stream to the board.



 Applications

  • Product Prototype Development
  • Signal Processing
  • Wired and Wireless Communications
  • Educational tool for schools and universities



 Board features

  • FPGA: Spartan-6 XC6SLX9 in TQG144 package
  • Flash memory: 16 Mb SPI flash memory (M25P16)
  • 100MHz CMOS oscillator
  • USB 2.0 interface for On-board flash programming
  • FPGA configuration via JTAG and USB
  • 8 LEDs and four switches for user defined purposes
  • 70 IOs for user defined purposes
  • On-board voltage regulators for single power rail operation



Specifications



Downloads



Sample Code

Name - Language/Technology - IDE - Hardware Modules Required - Download

  • 16x2 LCD Display - Verilog - Xilinx ISE - Download
Mimas IO Breakout Module , Alphanumeric LCD Display Expansion Module

  • LEDs - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , LED Expansion Module - 8 LEDs


  • Push Button Switch - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , Push Button Switch Expansion Module


  • Seven Segment LED Display - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , Seven Segment LED Display Expansion Module


  • 8Bit VGA - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , VGA Display Expansion Module


  • LM4550 AC97 Audio - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , LM4550 AC97 Expansion Module


  • CS4344 Stereo Audio - Verilog - Xilinx ISE - Download

Mimas IO Breakout Module , CS4344 Audio Expansion Module
