Placa de expansão para Bluno Beetle

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

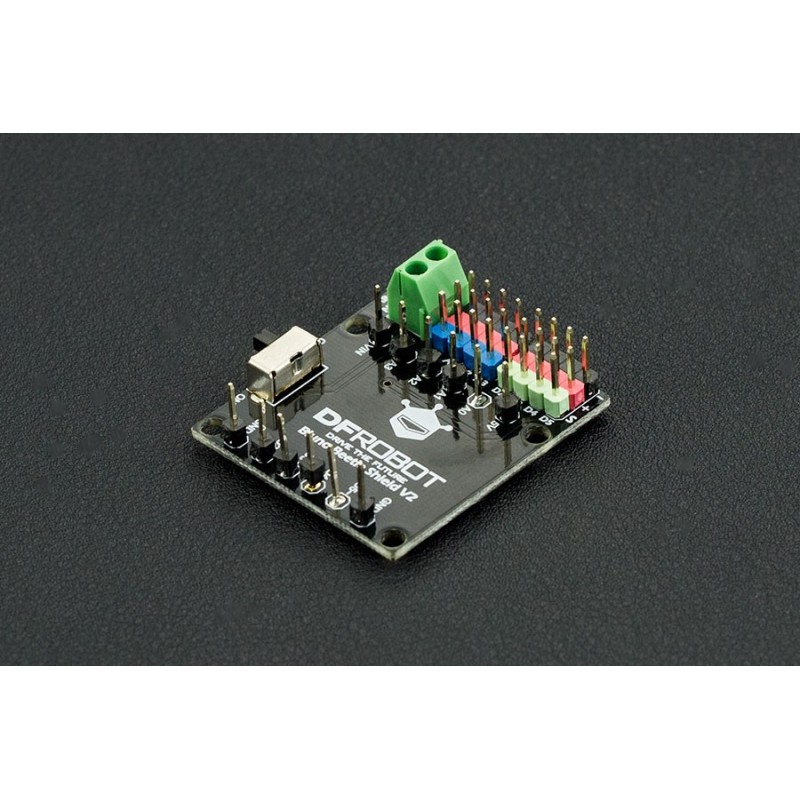

The Bluno Beetle Shield expands the Beetle's single analog and digital I/O pins to the 3 pin "gravity" interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield's I/O pins and then soldered in place.


FEATURES

• Digital I/O Pins x4: D2-D5
• Analog Input Pins x4: A0-A3
• Vin input range: 5-8v
• Mounting Holes x4 (3mm diameter)
• Power Switch

DOCUMENTS

• Wiki Doc
• More Documents
