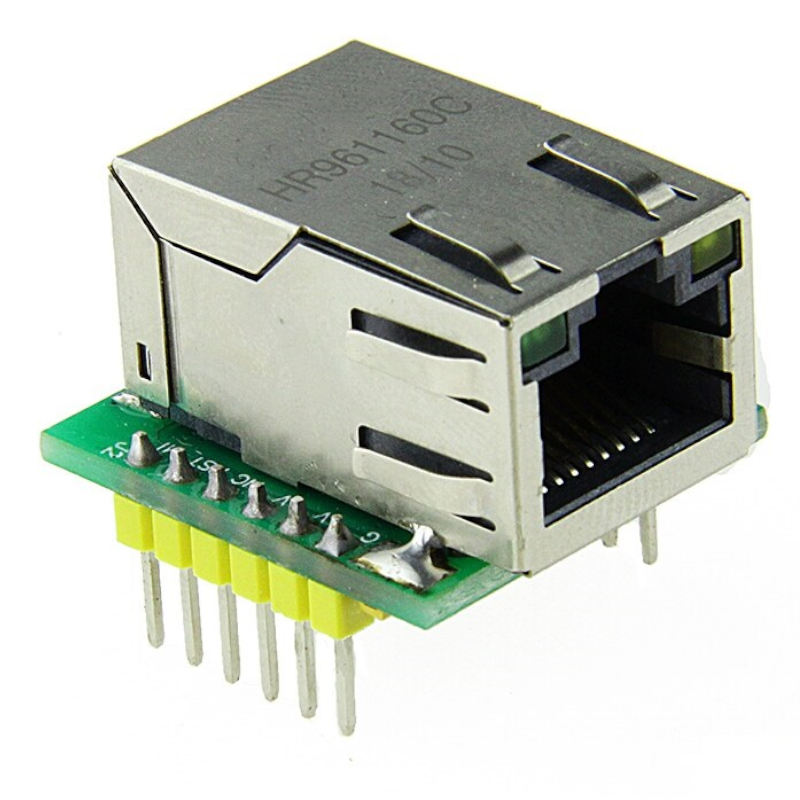

Módulo W5500 TCP/IP Ethernet c/ SPI - compatível com WIZ850io

: COM02058
9,90 €
preço com IVA incluído

​O módulo W5500 é um controlador Ethernet com protocolo TCP/IP integrado, proporcionando conectividade de rede estável através de uma interface SPI de até 80MHz. Suporta até 8 sockets simultâneos, possui 32KB de memória interna para buffers de transmissão/receção e é compatível com os protocolos TCP, UDP, ICMP, IPv4, ARP, IGMP e PPPoE. Este módulo é compatível com o WIZ820io e é ideal para aplicações que requerem comunicação Ethernet eficiente e de baixo consumo energético. ​


Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

1.80MHz high speed SPI interface
2. Built-in hardware TCPIP protocol stack, users hardly need to master complex network protocol knowledge
3. Support up to 8 Socket connections
4. Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
5. Integrated data link layer and physical layer
6. Support wake up after power failure
7. Support high-speed serial peripheral interface (SPI mode 0~3)
8. Internal 32K bytes transmit and receive buffer
9. Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
10. Support auto negotiation (10/100-Based full duplex/half duplex)
11. IP fragmentation is not supported
12.3.3V working voltage, I/O signal port 5V withstand voltage
13. LED status display (full duplex/half duplex, network connection, network speed, activity status)
14. Ultra-small pin-type package, convenient for embedded applications
15. Provide C application routines



Product Features:

1. Power supply mode: 3.3V external power supply, current should be greater than 200mA
2. Control interface form: 3.3V TTL level, SPI interface; 2*single row pin
3.PCB size (MM): 23 * 25 mm
4. Mechanical size (length * width * height): 28.5 * 23 * 24 mm
