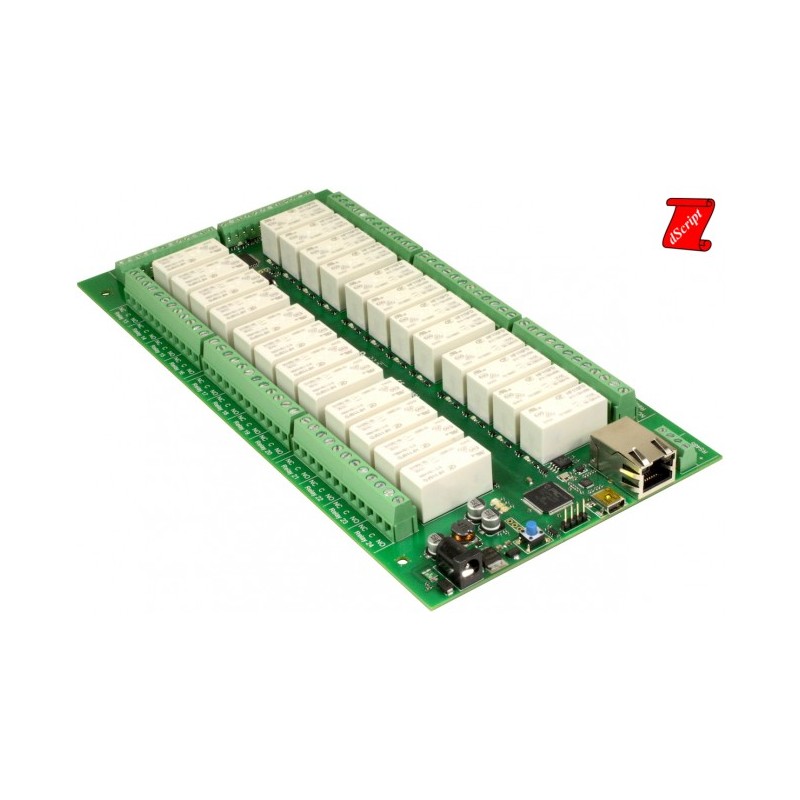

dS2824 - 24 x 16A Relé Ethernet

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Optional AES encryption for totally secure control using binary tcp/ip mode.
Add simple relay automation, for automatic relay control.
Create Peer to Peer control in a few clicks.
Up to eight 32-bit counters with capture and reset, 10 counts/second on inputs.
Event schedules for timed events daily or weekly.

Still want more?
You can completely customise the module using our powerful dScript language! - or just modify a supplied example.
Create custom webpages - Add your own logo, buttons and functionality.
Add a tcp server to respond to incoming tcp requests with your own functions.
Include a tcp client and send packets of tcp data to other devices using your own protocol.

Hardware
Serial ports - 1 x TTL level serial port, 1 x RS485 port.
Relays - 24 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts
I/O - 8 flexable channels, your choice of VFC input, NPN output or 12-bit analogue input.
Communication - USB for development, RJ45 Ethernet for normal access
Power - 12V DC jack 2.1mm (adaptor sold separately)

IDE
dScript editor requirements - Windows 7 or later.

• Documentation, editor and examples - dScript IDE
  Module documentation only - dS2824 documentation
